High Quality Metal Culvert Pipe Production Line – Metal Assembled Corrugated Pipe Machine – Thomas
High Quality Metal Culvert Pipe Production Line – Metal Assembled Corrugated Pipe Machine – Thomas Detail:
Corrugated steel culvert are made of carbon steel. Which are with Annular corrugation have high load bearing capacity. Culverts built with this kind of pipe segments are called corrugated steel culverts . To prevent corrosion, corrugated metal culvert pipes are usually made of galvanized carbon steel usually with a zinc coating range from 275g/m2 to 1200g/m2, which is still changeable and subject to customers’ requirements.

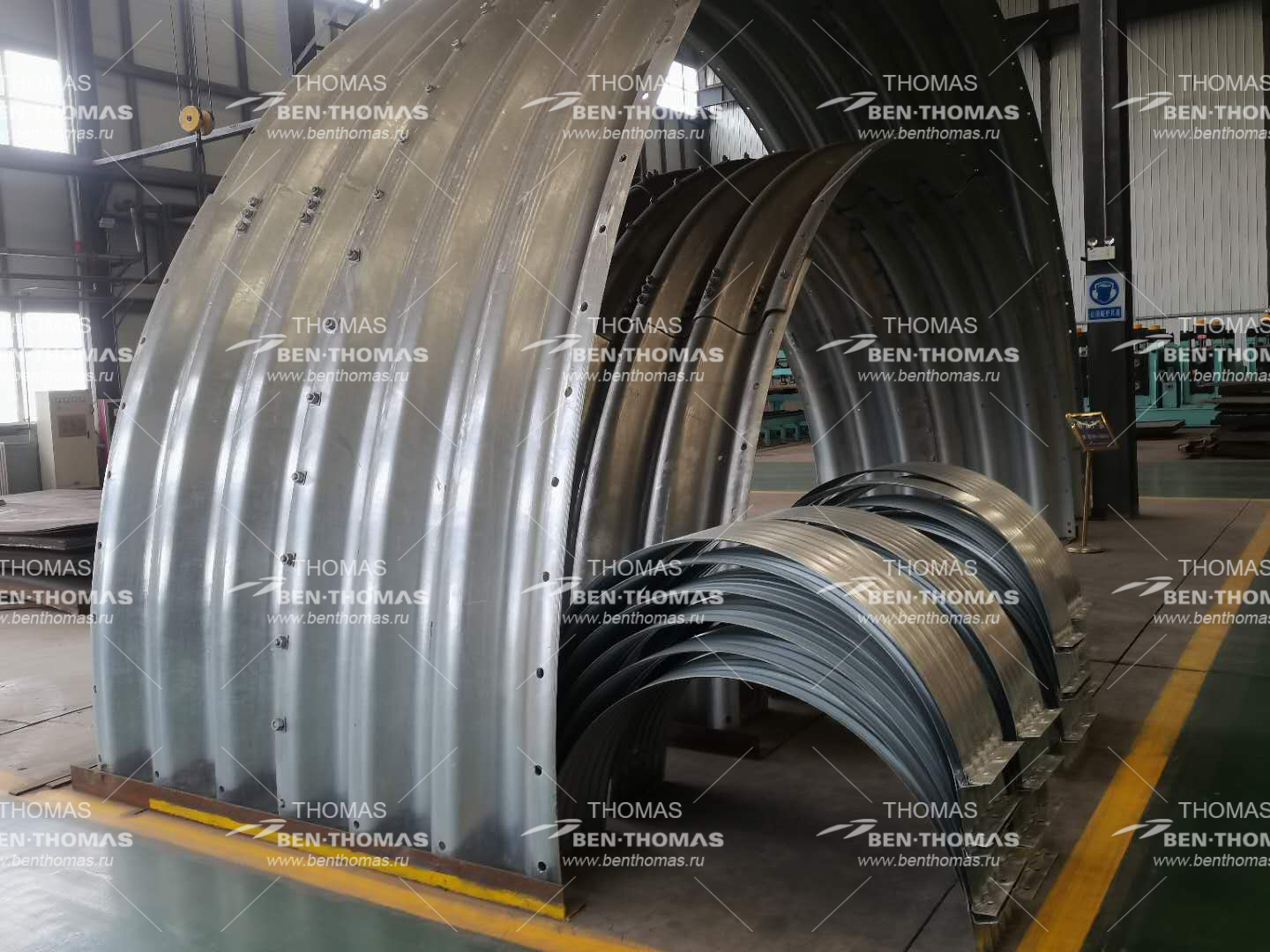

Our steel culvert production line is to produce corrugated plates which will be assembled piece by piece .
Our culvert pipe making machine can produce with the common corrugations are : 68*13,100*20,150*50,200*55, 380*140,300*110 ,400*150
The finished culverts are widely used in highway, railway, bridge, tunnel, retaining wall and all kinds of mine,tunnel retaining wall support engineering culvert (pipe).

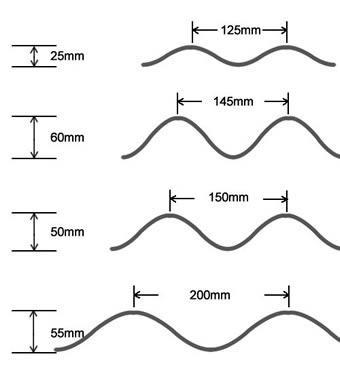

1.Drawing of the profile of the silo panel:
(Machine can be customized according to your needs, the following picture is the drawing provided by our customer, for reference only.)
2. Production for reference :
3.Working process :
Hydraulic decoiler – Auxiliary feed – Pre-cutting – Corrugated coil forming – Conveyor platform – Perforation Conveyor platform — Cutting — Conveyor platform — Bending

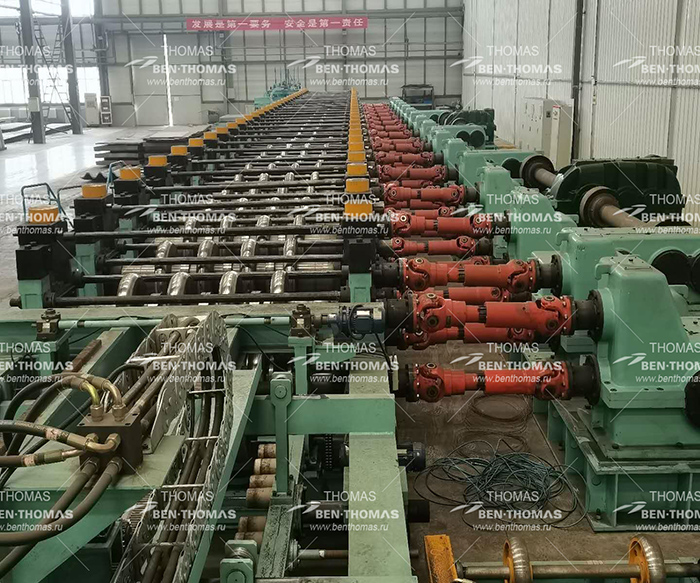

4. Machine Pictures:
5. Machine Details :
|
Description |
||
|
Production name |
Metal Assembled Corrugated Pipe Machine |
|
|
Machine floor area |
About 25.5m*2.5m（L*W） |
|
|
Feeding direction |
left in, and right out |
|
|
Voltage parameter |
380v,50Hz, 3 phase |
|
|
Hydraulic oil |
46# hydraulic oil |
|
|
Gear oil |
18# hyperbolic gear oil |
|
|
Shaft diameter |
68*13—13 steps |
|
|
Shaft Material |
40Cr, quenching and tempering |
|
|
Rack |
Gantry type (Memorial archway type) |
|
|
Rack material |
Nodular cast iron |
|
|
Punching die material |
SKD11 |
|
|
Rack quantity |
20 rows |
|
|
Drive mode |
Gear box drive |
|
|
Working speed |
4–8 m /min |
|
|
Transmission mode |
Each rack with a gear distribution box drive |
|
|
Forming roller |
GCr15, quenching, the hardness of HRC56-62 º |
|
|
Motor power |
45 KW *2 Siemens brand |
|
|
Machine color |
Machine base |
As required |
|
Rack and gear box |
As required |
|
6. After-sales service :
1) . User manuals / videos on installation, adjustment, setup and maintenance of the machine will be provided.
2). The machine is with Wi-Fi function, our technicians will help to work if the machine has a problem.
3). when the borders are open, we will send technicians to your factory for training. (The cost is paid by the seller.)
4). Warranty 2 years (Excluding man-made damage)
5). Delivery time: 90 working days.
6). Machine price: contact us.
