Grain bin silo top roof machine production line

Short Description:

Contacts: Ms. Elise
Work Phone: +86 15232975068
Email: elise@tgrollforming.com
WhatsApp: +86 15232975068
WeChat: +8615232975068


Product Detail

Product Tags

截屏2023-07-05上午8.53.20

1. Silo Roof Profile Drawing:

(Machine can be customized according to your needs, the following picture is the drawing provided by our customer, for reference only .)

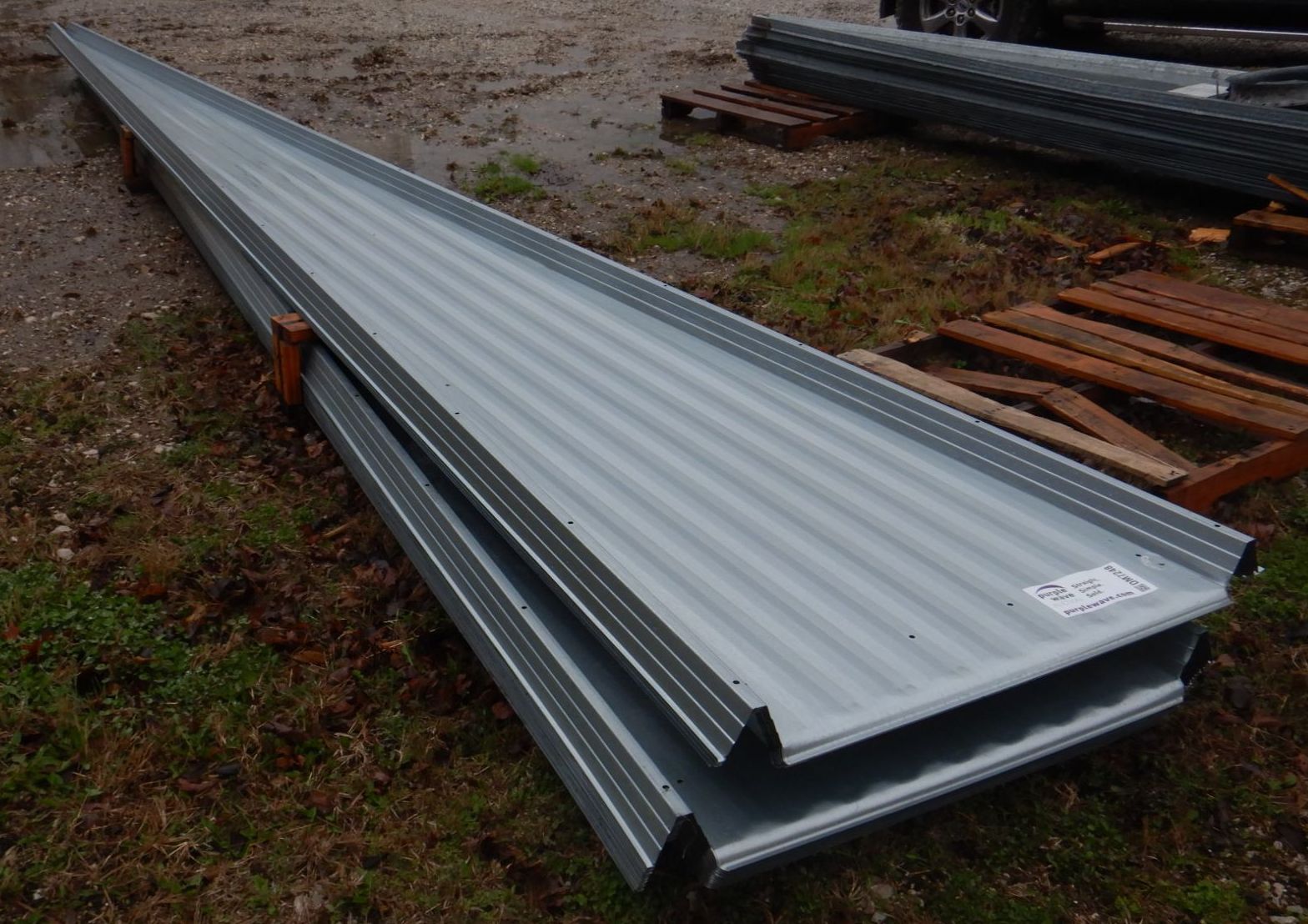

2.Finished Product:



webwxgetmsgimg (17).jpg






3.Working process of the production line:



Decoiler—leveling—cutting with angle —servo displacement rolling shear—double layer conveying roller table—single layer conveying roller table —pneumatic pressing—CNC servo punching 1#—roll forming machine 1#—conveying roller table —CNC servo punching 2#—rolling forming machine 2#—conveying roller table—pneumatic suction and palletizing



4. Machine Pictures:














5. Machine Details :



 No

  Name

 Number

  1

 10 tons hydraulic automatic decoiler (with feeding trolley)

 1 set

  2

  Leveling machine

 1 set

  3

 Angle cutting machine

 1 set

  4

 Servo displacement rolling shear (with pinch roller)

 1 set

  5

 10m double-layer conveyor roller table (equipped with stopper, turn over, guide device)

 1 set

  6

 8m single-layer conveyor roller (with guide positioning)

 1 set

  7

 Double-station angle punching machine (including cutting small head waste)

 2 set

  8

 8m conveying roller table (with guiding positioning, pneumatic pressing and feeding device)

 1 set

  9

 Roll forming part 1#

 1 set

  10

 CNC servo punching machine 1#

 1 set

  11

 15m conveyor roller

 1 set

  12

 8m conveying roller table (with guiding positioning, pneumatic pressing and feeding device)

 1 set

  13

 CNC servo punching machine 2#

 1 set

  14

 Roll forming part 2#

 1 set

  15

 15m conveyor roller platform

 1 set

  16

 8m conveyor roller platform (with guide and positioning device)

 1 set

  17

 Automatic palletizer

 1 set

  18

 Electric control system

 1 set

  19

 Pneumatic system

 1 set

  20

 Hydraulic system

 1 set



6. After-sales service :



1) . User manuals / videos on installation, adjustment, setup and maintenance of the machine will be provided.

2). The machine is with Wi-Fi function, our technicians will help to work if the machine has a problem.

3). when the borders are open, we will send technicians to your factory for training. (The cost is paid by the seller.)

4). Warranty 2 years (Excluding man-made damage)

5). Delivery time: 90 working days.

6). Machine price: contact us.
