Grain storage silo corrugated sidewall machine
1.Drawing of the profile of the silo panel:
(Machine can be customized according to your needs, the following picture is the drawing provided by our customer, for reference only.)

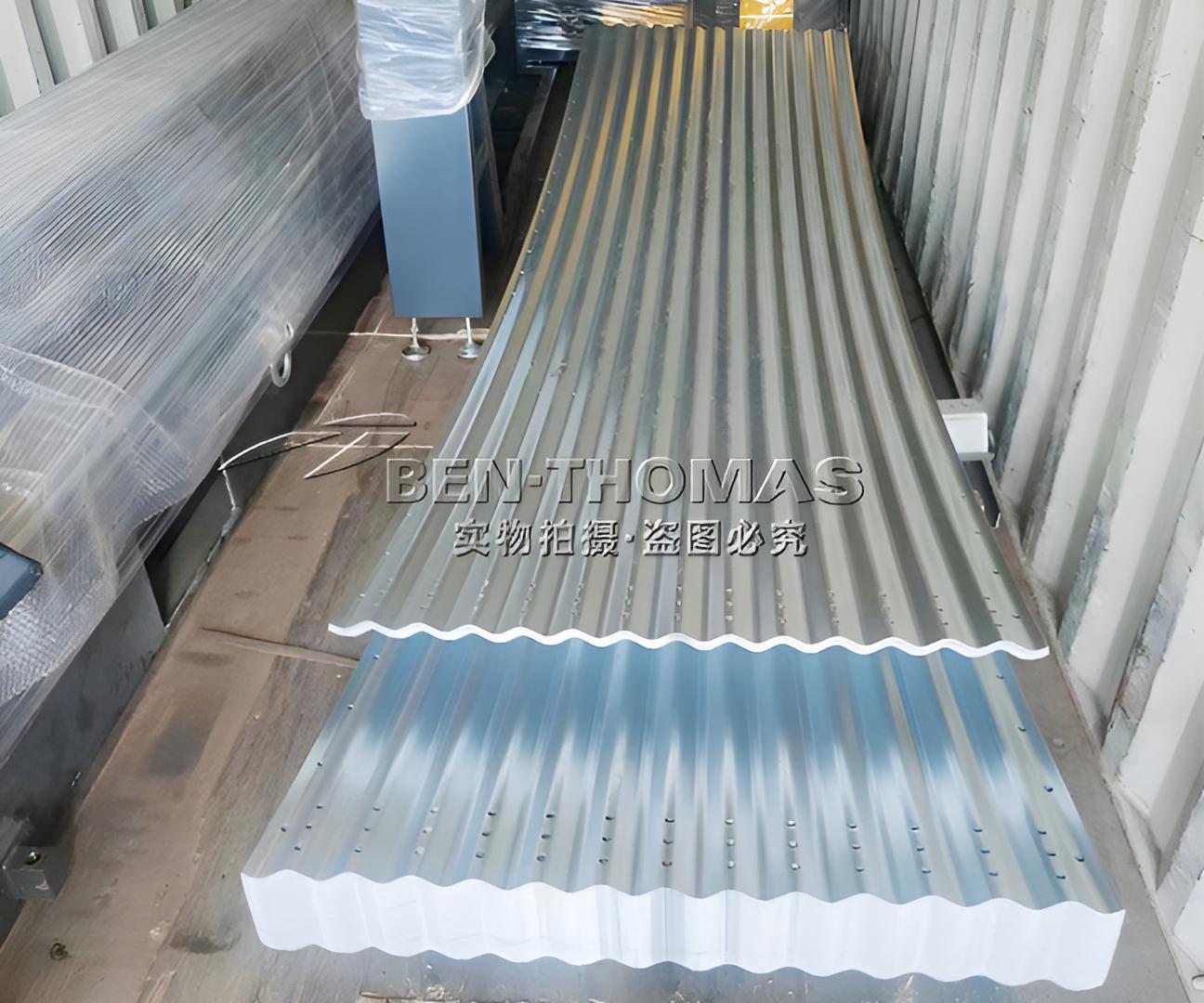

2.Finished Product:
3.Working process of the production line:
Hydraulic decoiler --Shovel head device(Auxiliary feeding +Leveling) --Pre Cutting--Roll Forming Machine--Slitting & Waste Wire Collecting--Movable Pallet--Servo Movable Punching--Movable Pallet--CNC Bending--Hydraulic Cutting--Receive Table

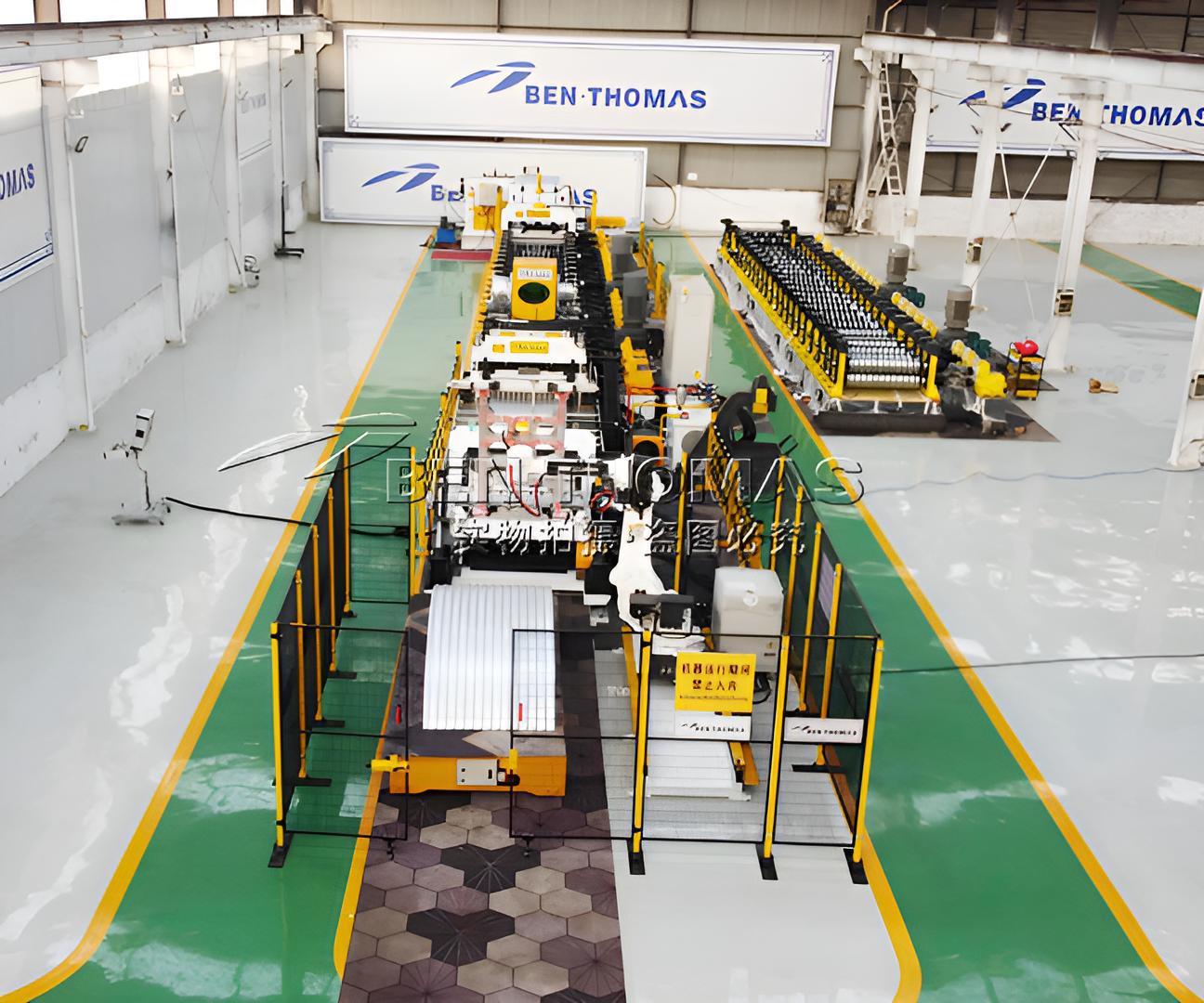

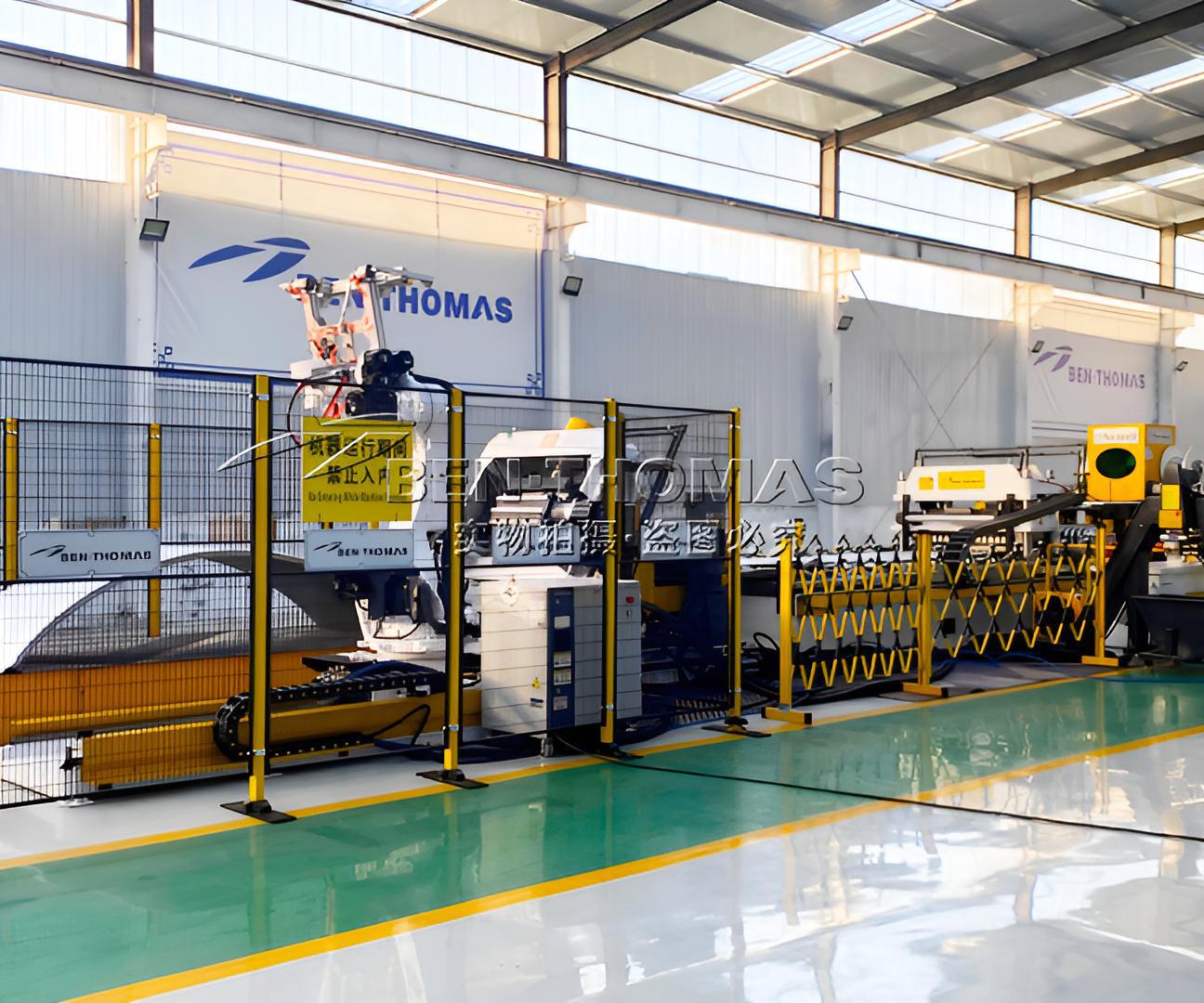

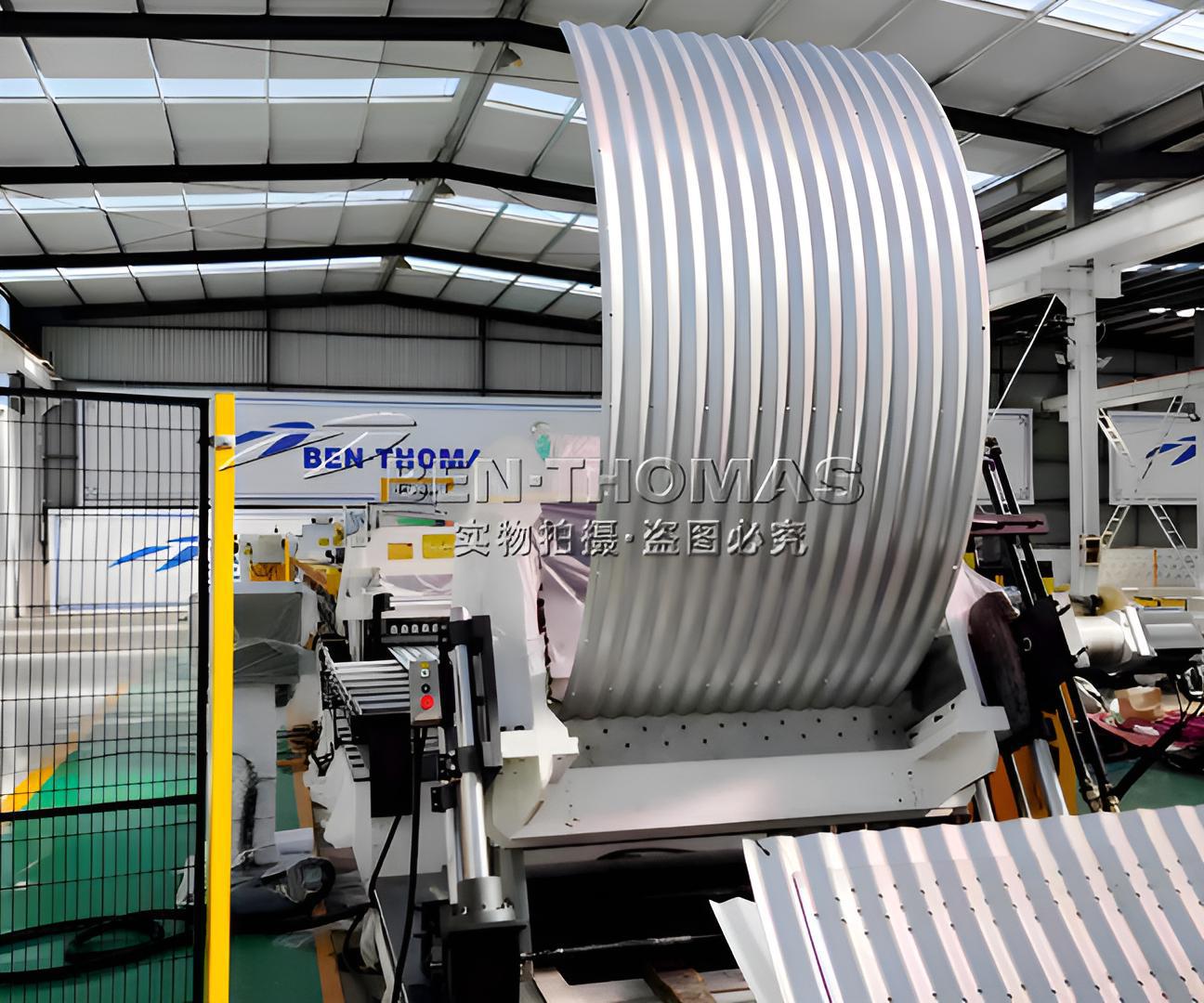

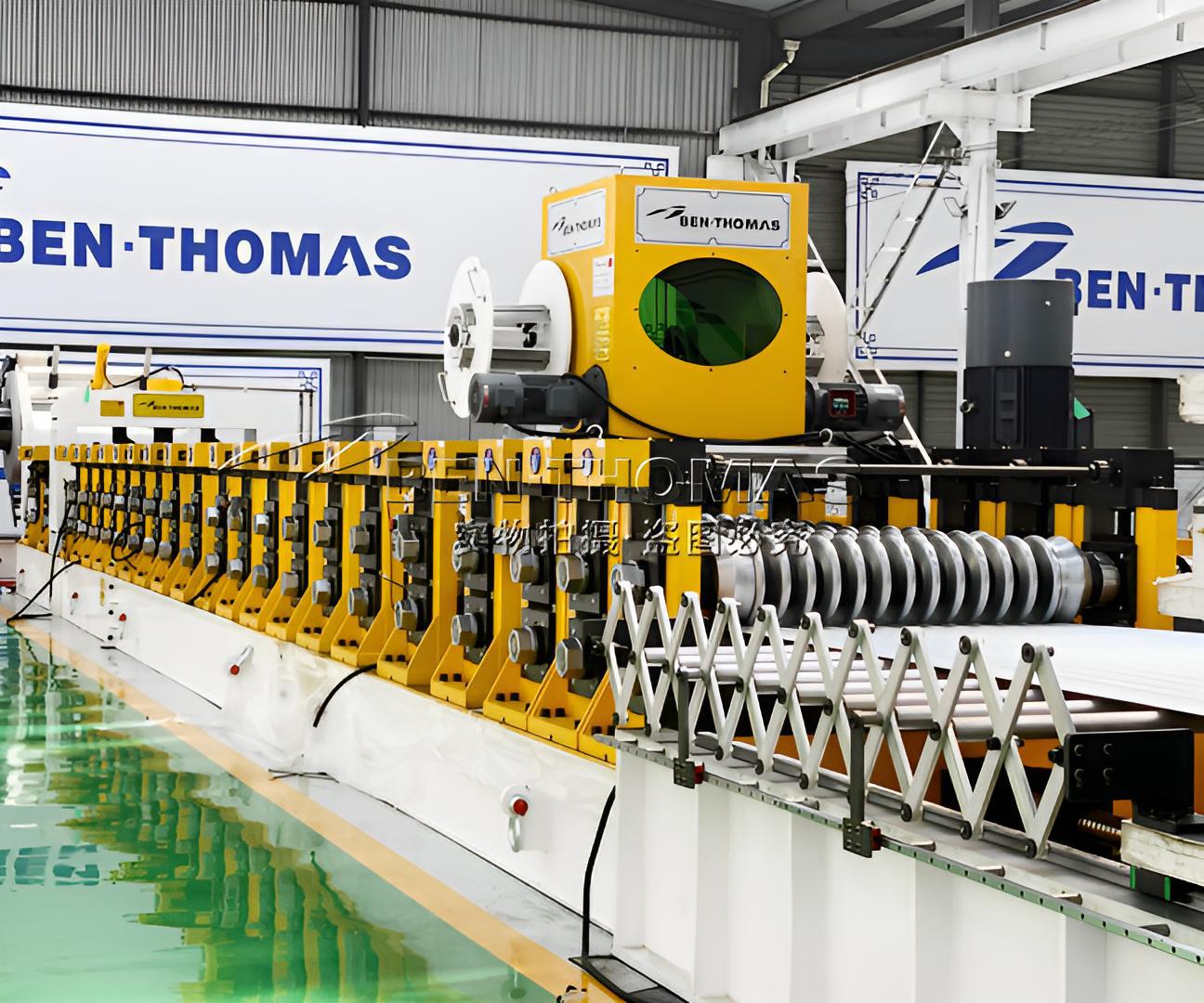

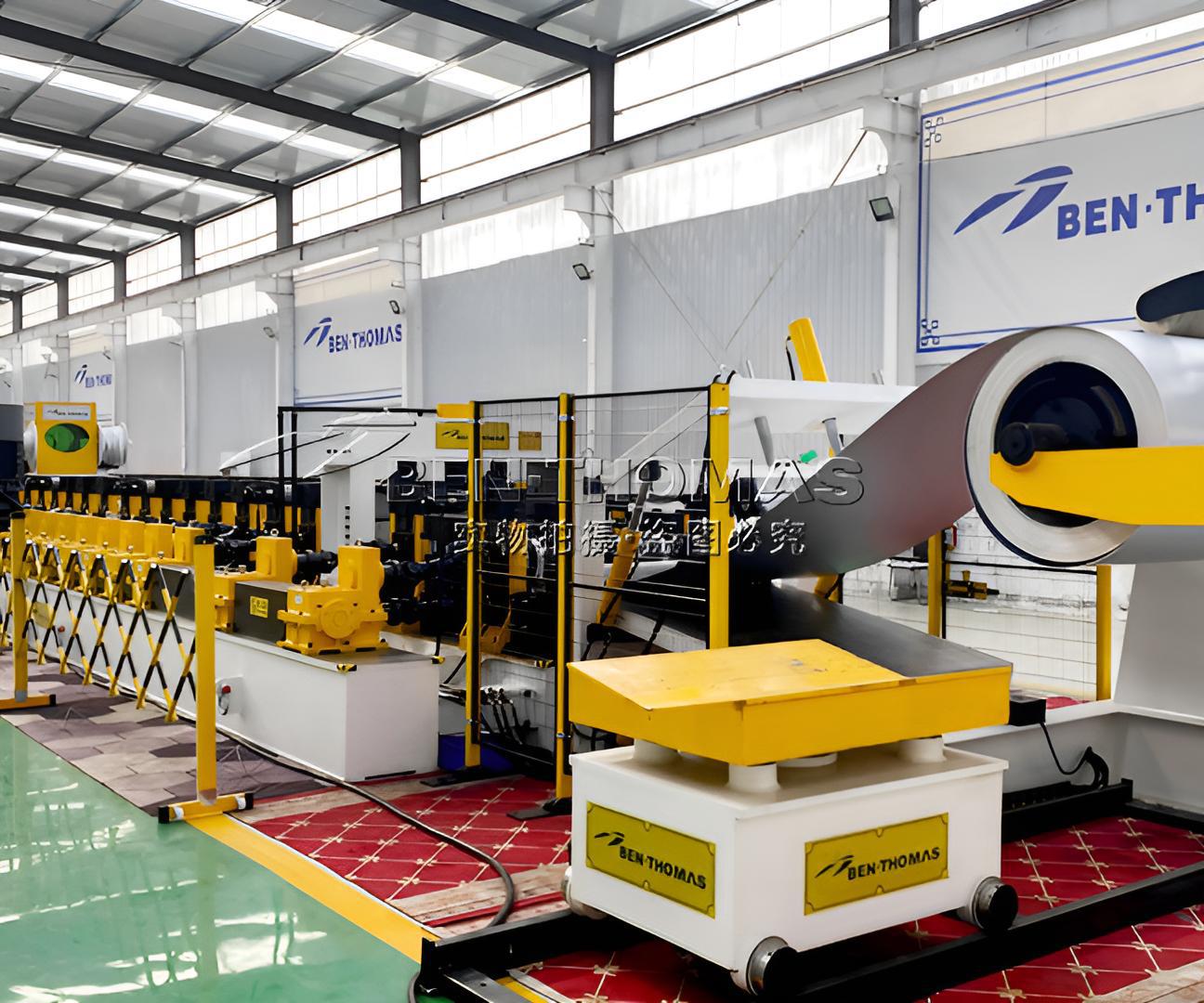

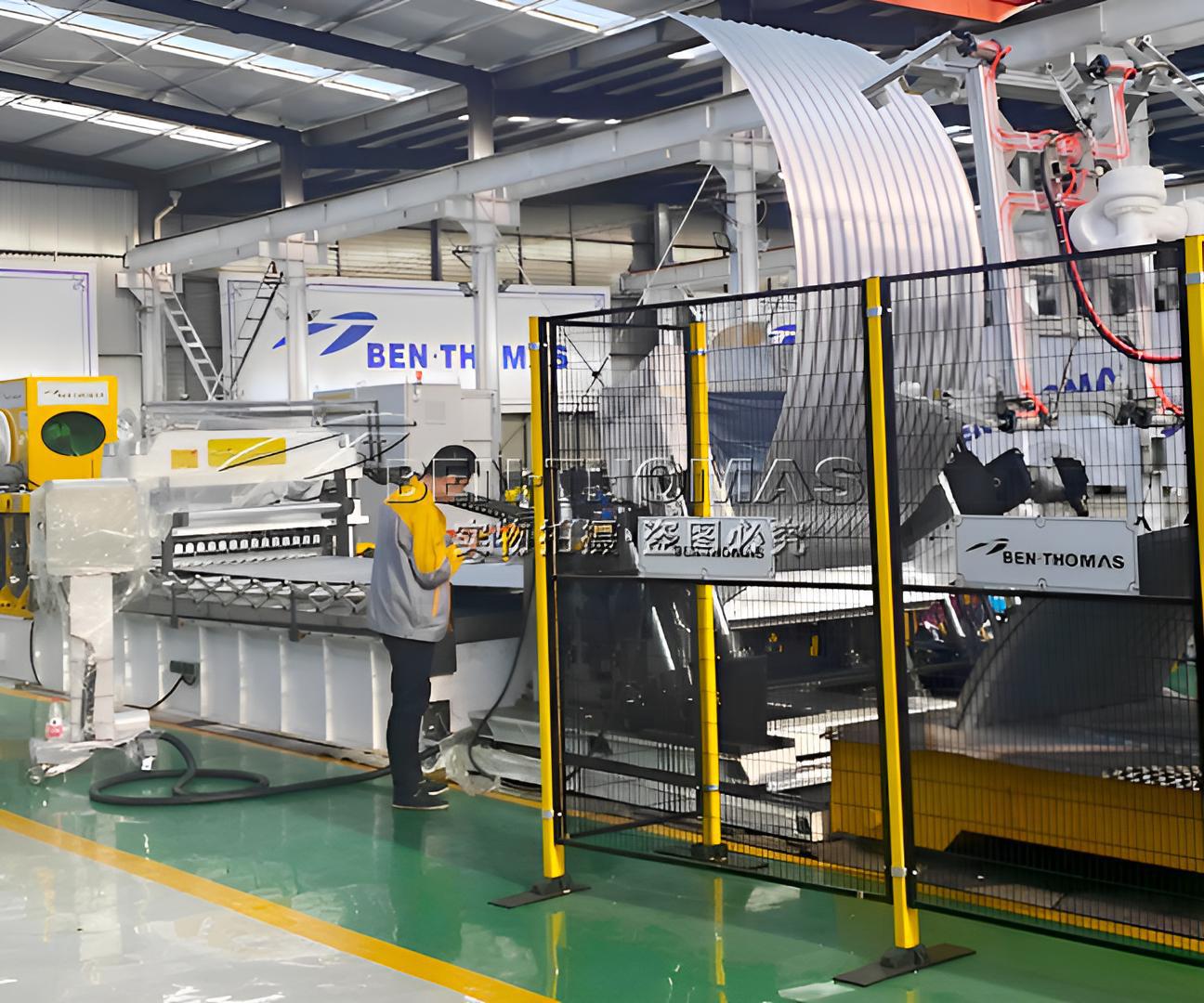

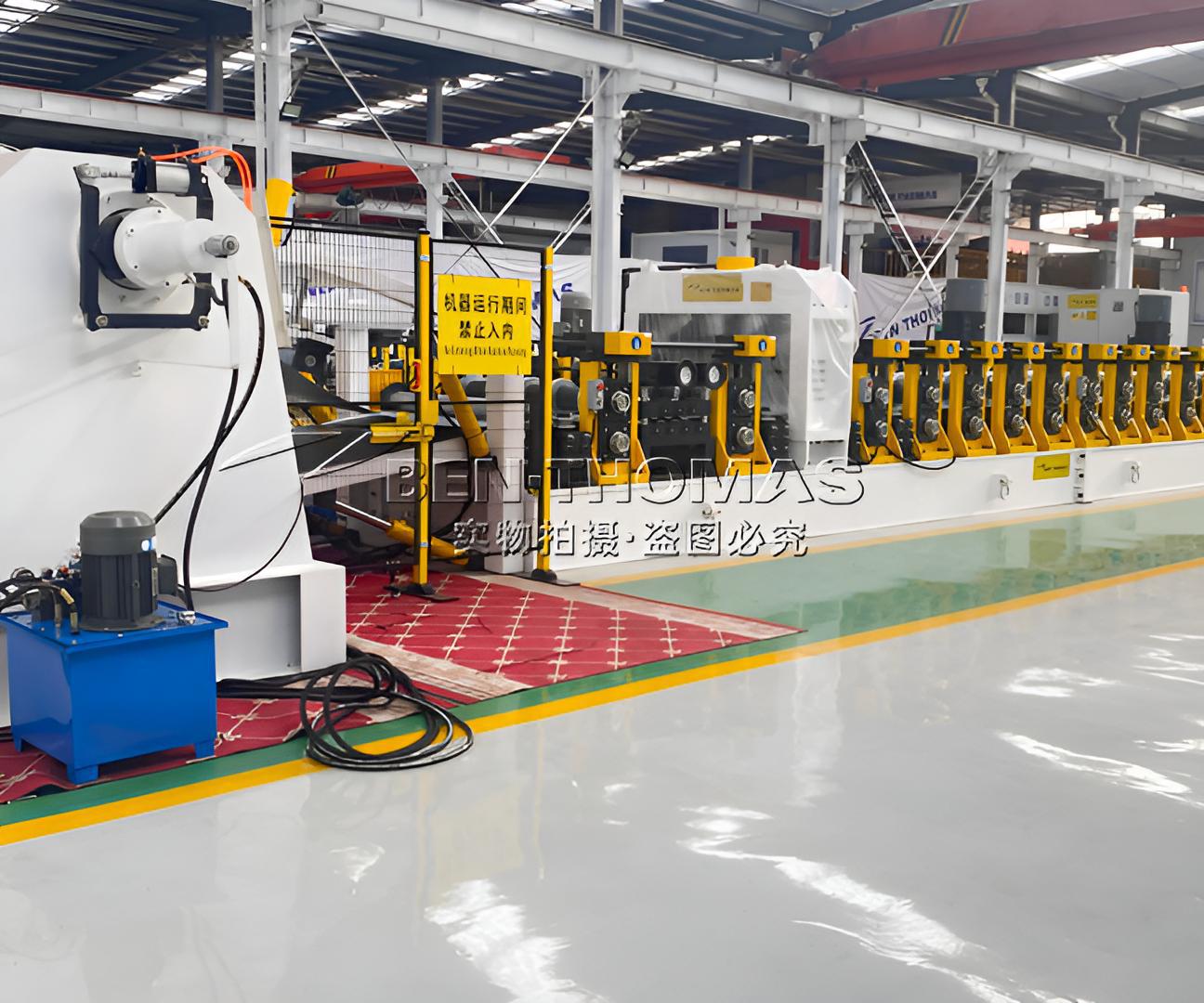

4. Machine Pictures:
5. Machine Details :
|
Description |
||
|
Model |
TH-21332 |
|
|
Floor area |
35*5*1.85（L*W*H） |
|
|
Feeding direction |
left in, and right out |
|
|
Voltage parameter |
380v,50Hz, 3 phase |
|
|
Hydraulic oil |
46# hydraulic oil |
|
|
Gear oil |
18# hyperbolic gear oil |
|
|
Shaft diameter |
140mm |
|
|
Shaft Material |
40Cr, quenching and tempering |
|
|
Rack |
Gantry type (Memorial archway type) |
|
|
Rack material |
Nodular cast iron |
|
|
Punching die material |
SKD11 |
|
|
Rack quantity |
22 rows |
|
|
Drive mode |
Gear box drive |
|
|
Working speed |
1 piece/min |
|
|
Transmission mode |
Each rack with a gear distribution box drive |
|
|
Forming roller |
GCr15 |
|
|
Motor power |
45 KW*2 Siemens brand |
|
|
Machine color |
Machine base |
As required |
|
Rack and gear box |
As required |
|
6. After-sales service :
1) . User manuals / videos on installation, adjustment, setup and maintenance of the machine will be provided.
2). The machine is with Wi-Fi function, our technicians will help to work if the machine has a problem.
3). when the borders are open, we will send technicians to your factory for training. (The cost is paid by the seller.)
4). Warranty 1 years (Excluding man-made damage)
5). Delivery time: 90 working days.
6). Machine price: contact us.
