Metal Assembled Corrugated Pipe Machine

Short Description:

Contacts: Ms. Elise
Work Phone: +86 15232975068
Email: elise@tgrollforming.com
WhatsApp: +86 15232975068
WeChat: +8615232975068
Skype: babygirlelise2


Product Detail

Product Tags

Corrugated steel culvert are made of carbon steel. Which are with Annular corrugation have high load bearing capacity. Culverts built with this kind of pipe segments are called corrugated steel culverts . To prevent corrosion, corrugated metal culvert pipes are usually made of galvanized carbon steel usually with a zinc coating range from 275g/m2 to 1200g/m2, which is still changeable and subject to customers’ requirements.
Our steel culvert production line is to produce corrugated plates which will be assembled piece by piece .
Our culvert pipe making machine can produce with the common corrugations are : 68*13,100*20,150*50,200*55, 380*140,300*110 ,400*150
The finished culverts are widely used in highway, railway, bridge, tunnel, retaining wall and all kinds of mine,tunnel retaining wall support engineering culvert (pipe).

1.Drawing of the profile of the silo panel:

(Machine can be customized according to your needs, the following picture is the drawing provided by our customer, for reference only.)

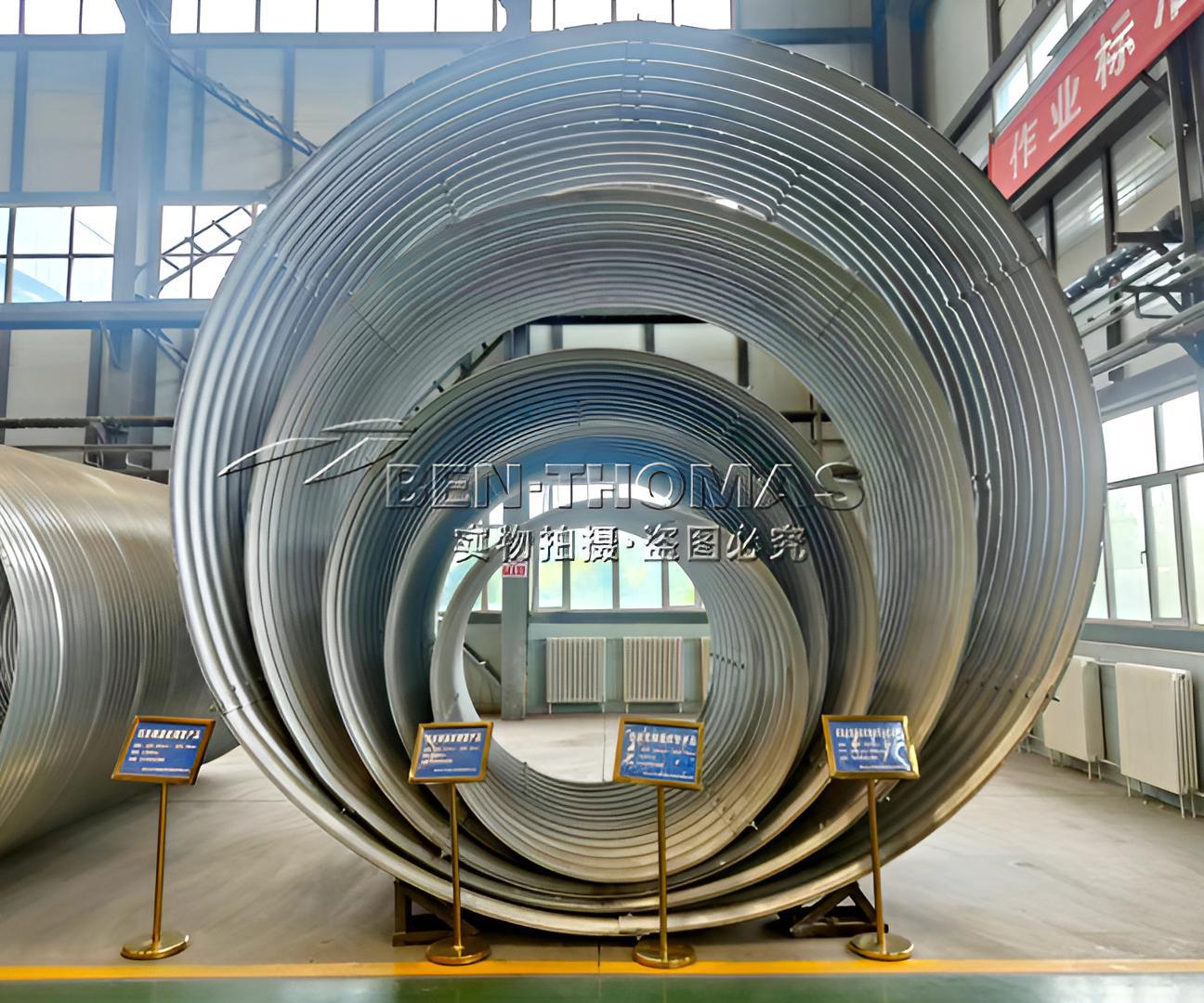

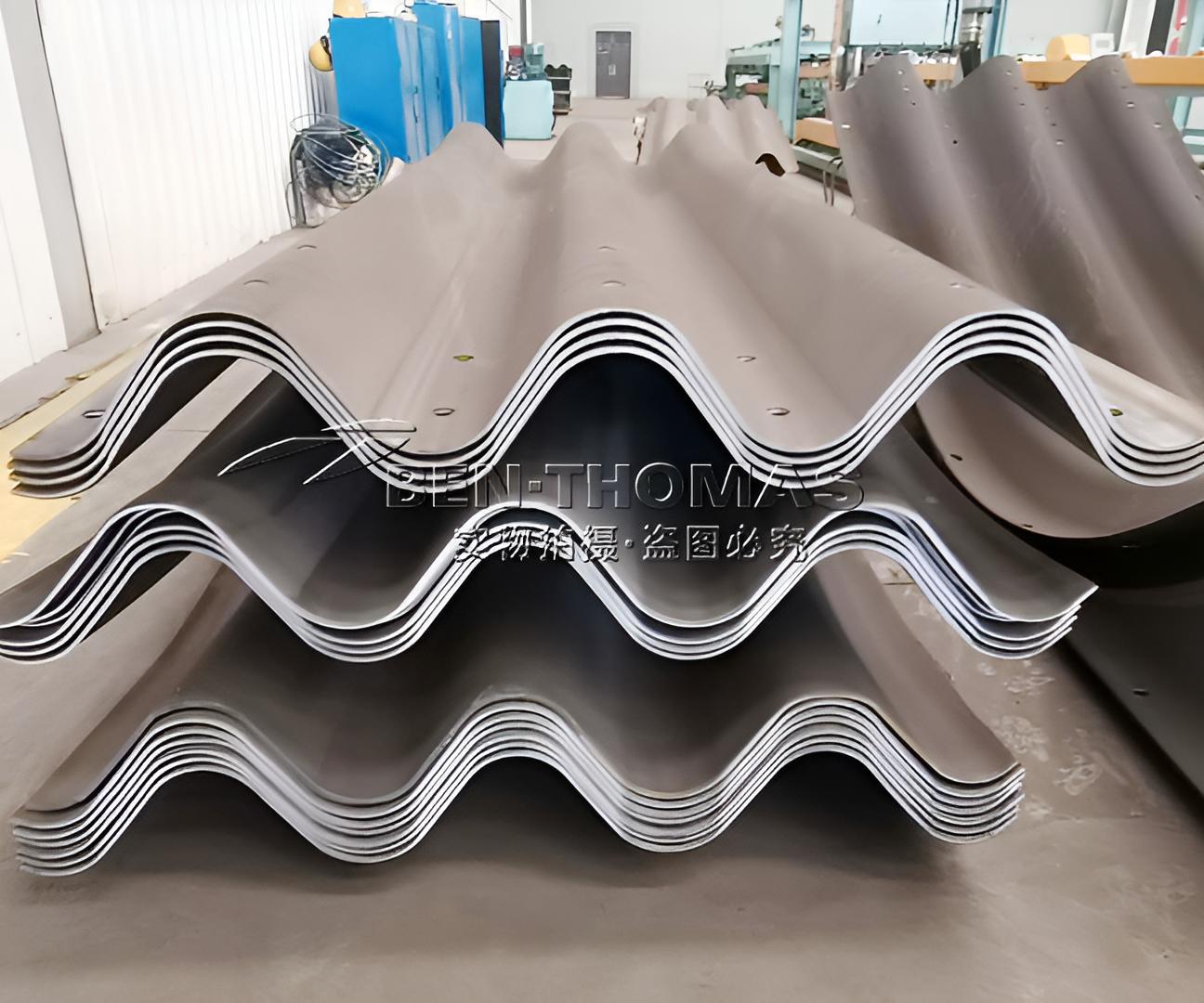

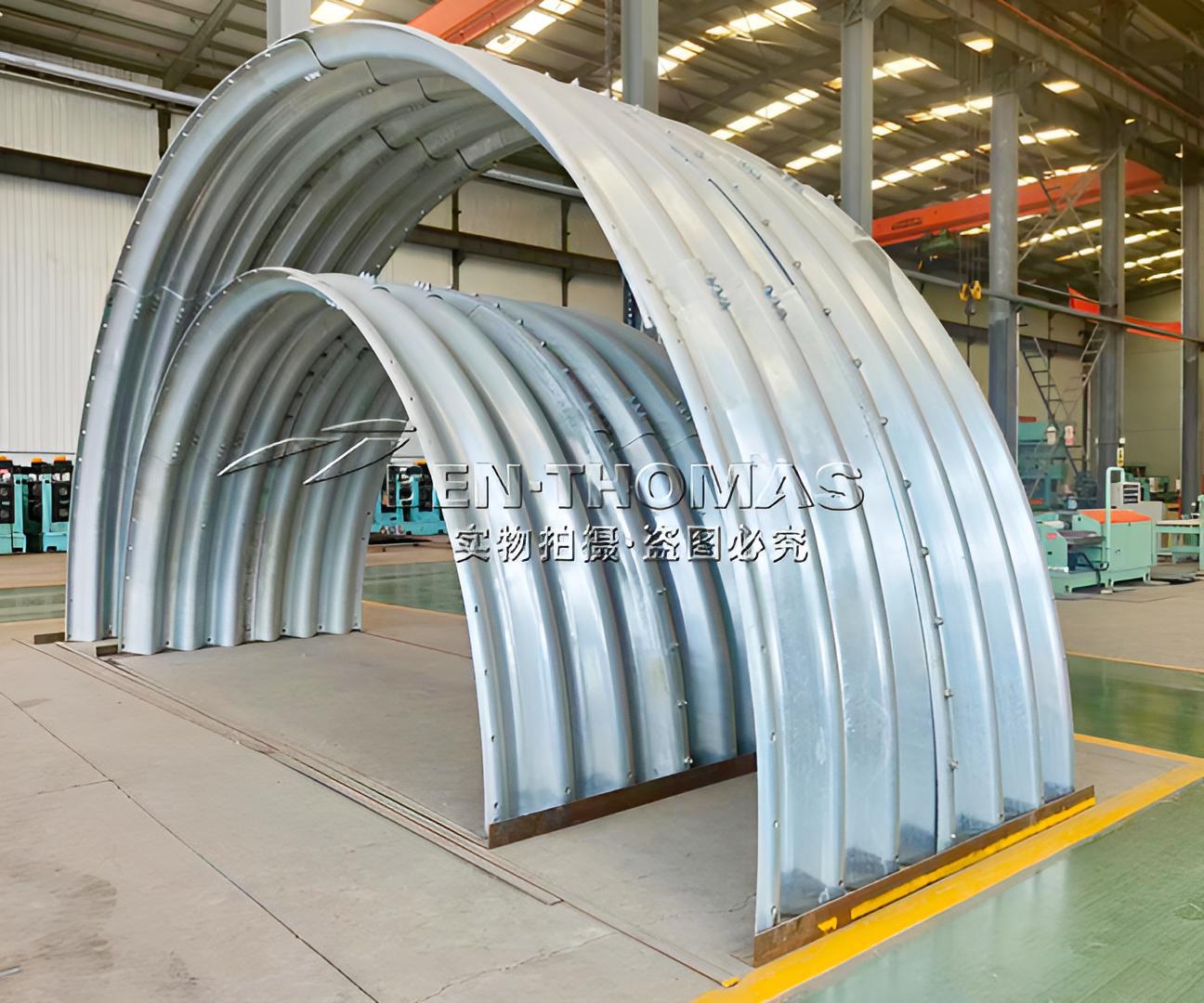

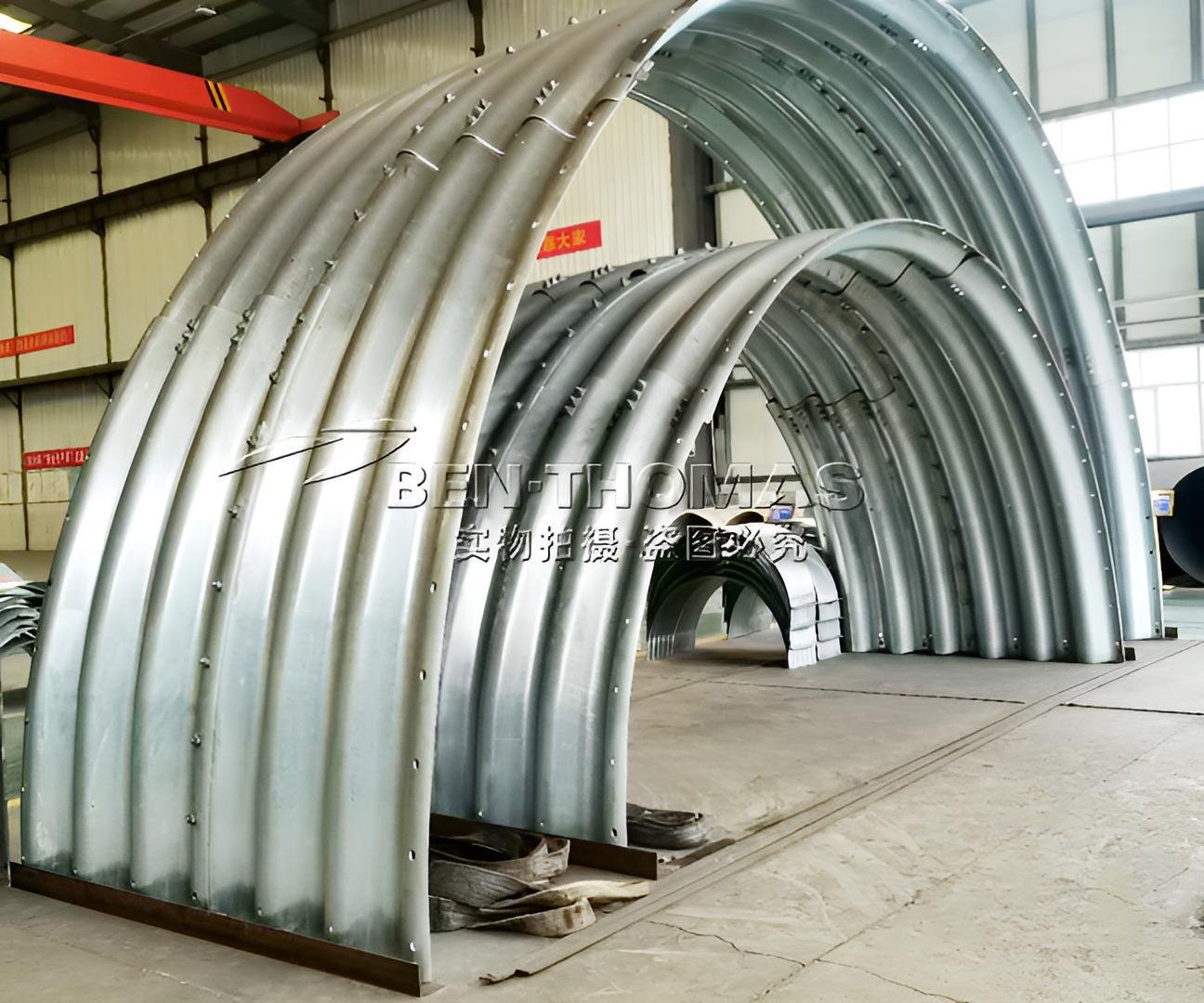

2. Production for reference :




3.Working process :

Hydraulic decoiler - Auxiliary feed - Pre-cutting - Corrugated coil forming - Conveyor platform - Perforation Conveyor platform --- Cutting --- Conveyor platform --- Bending

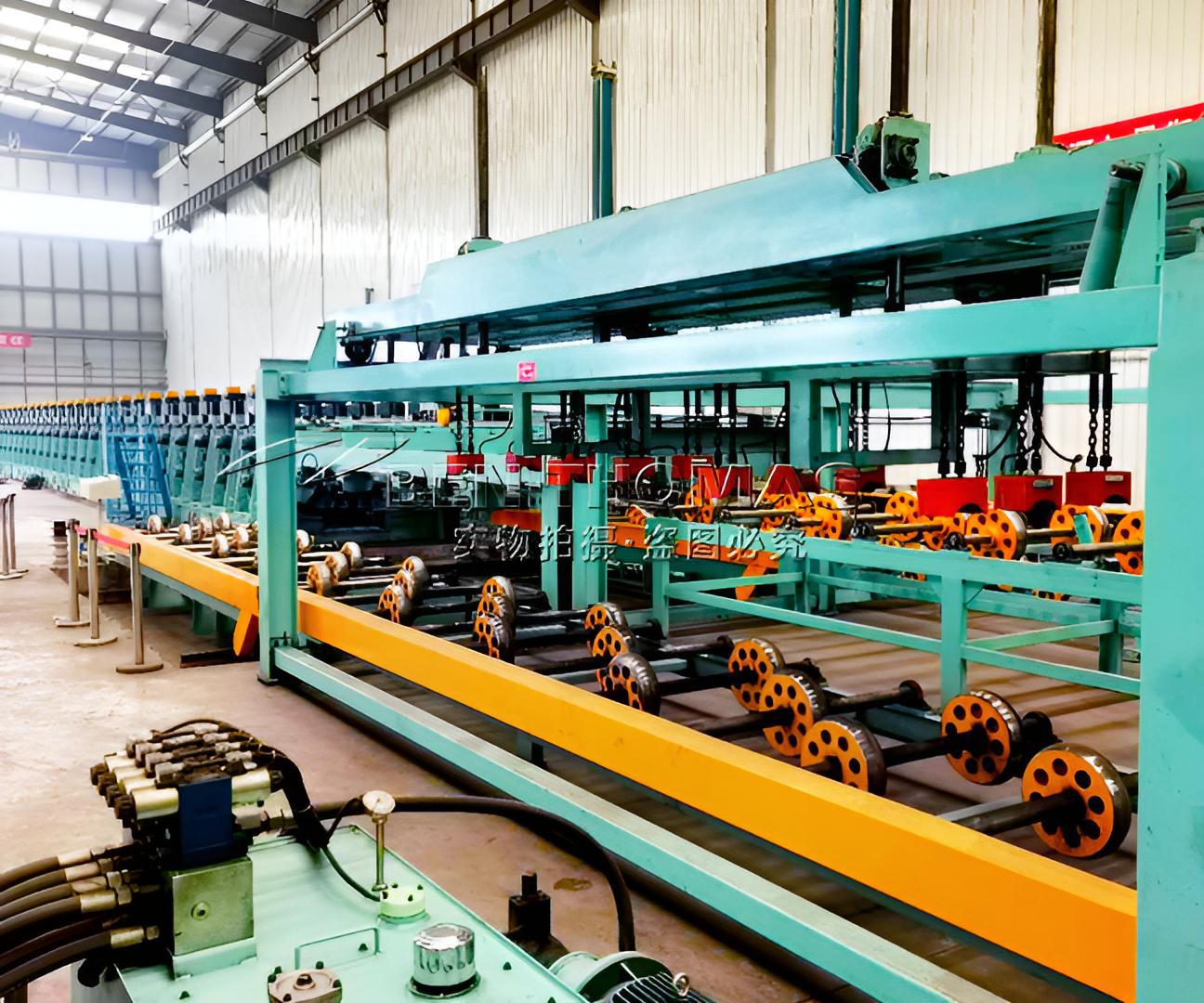

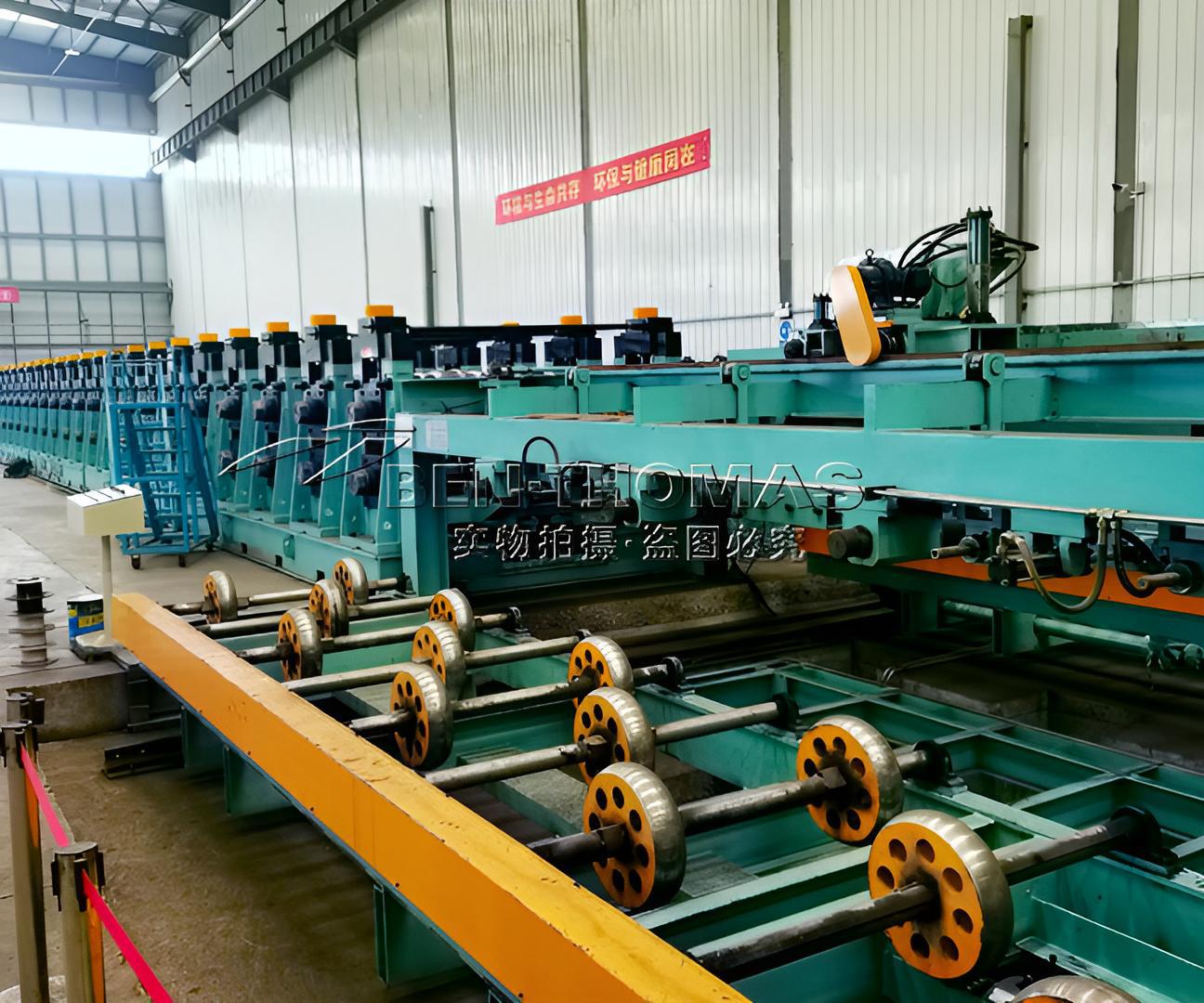

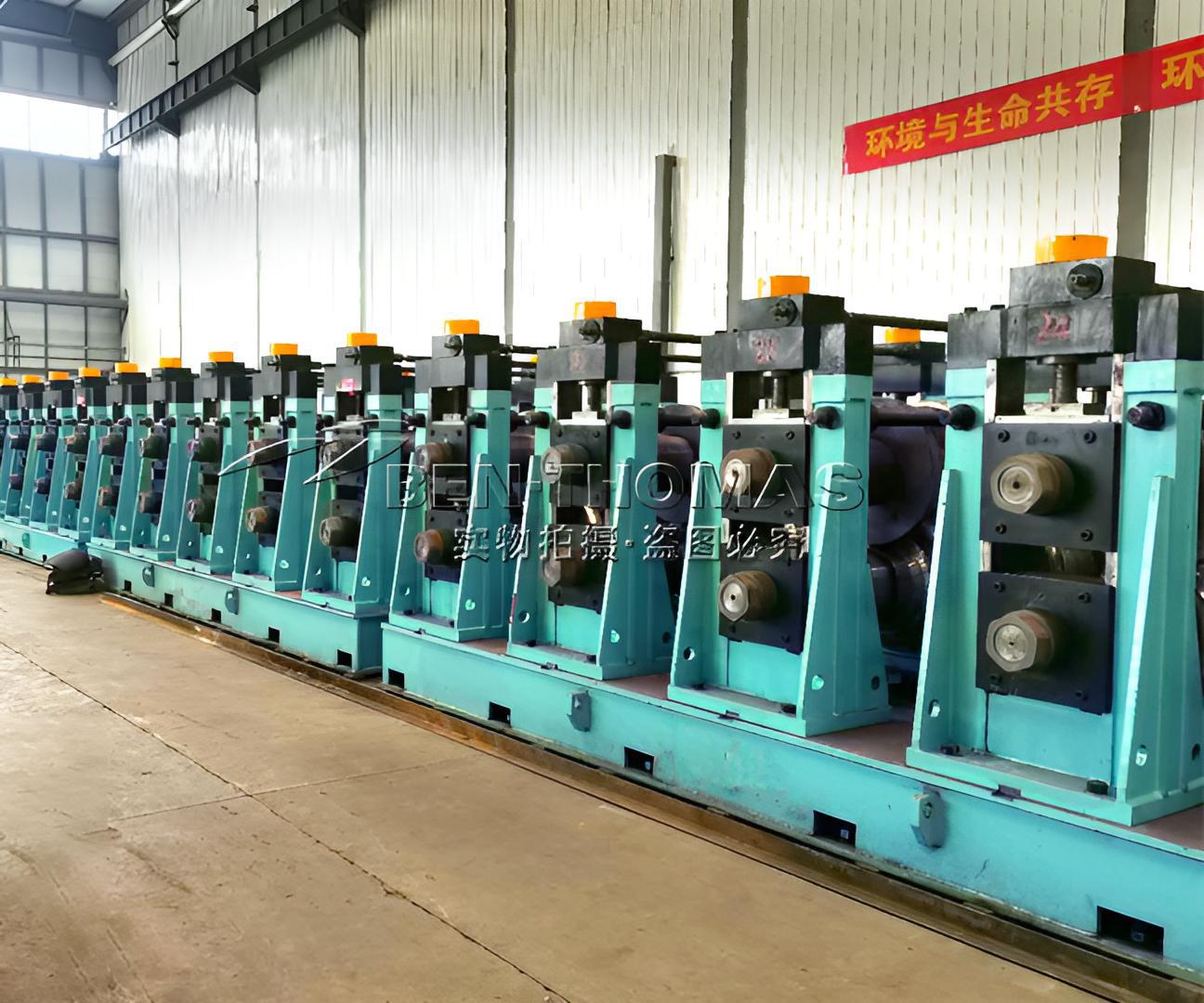

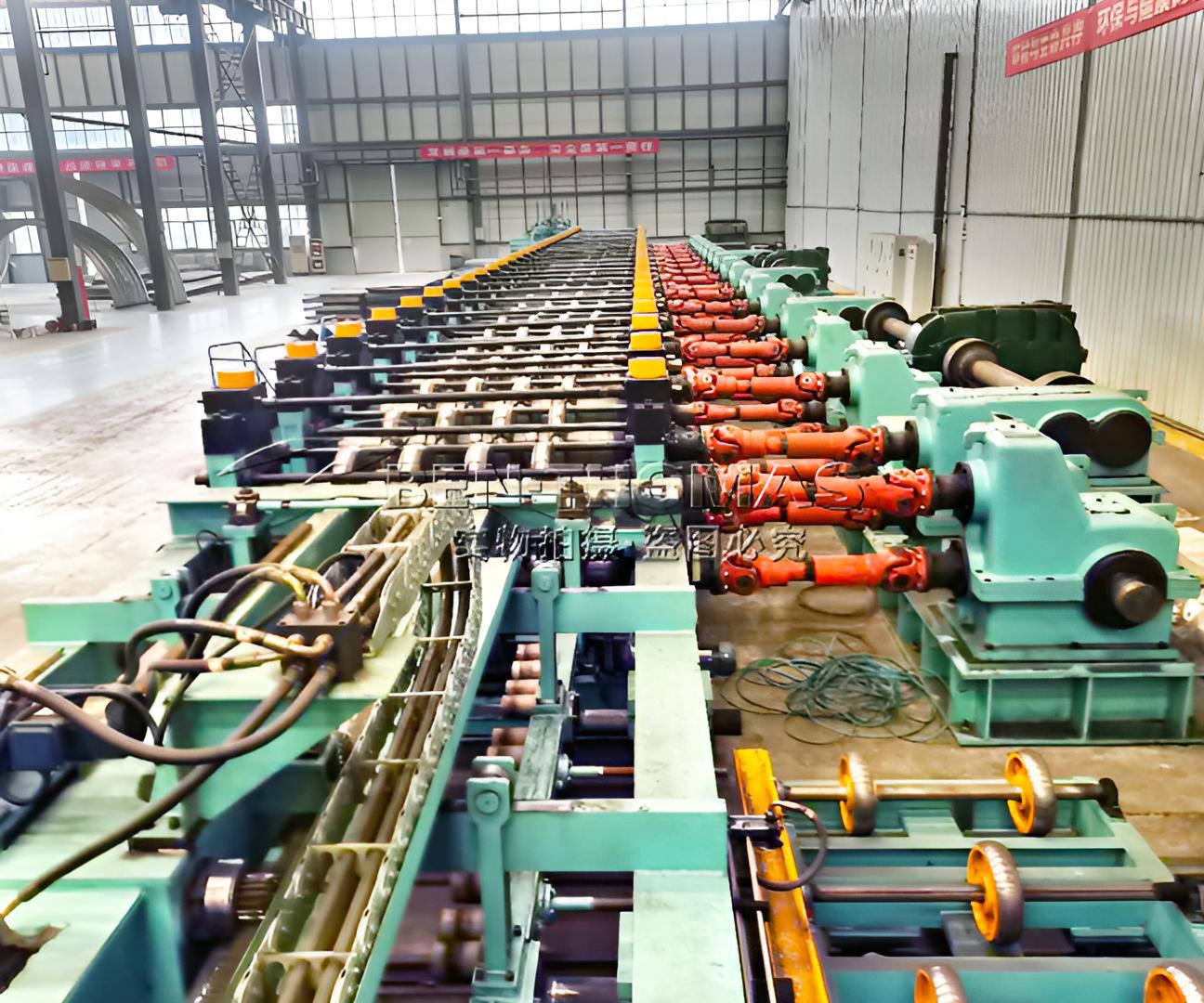

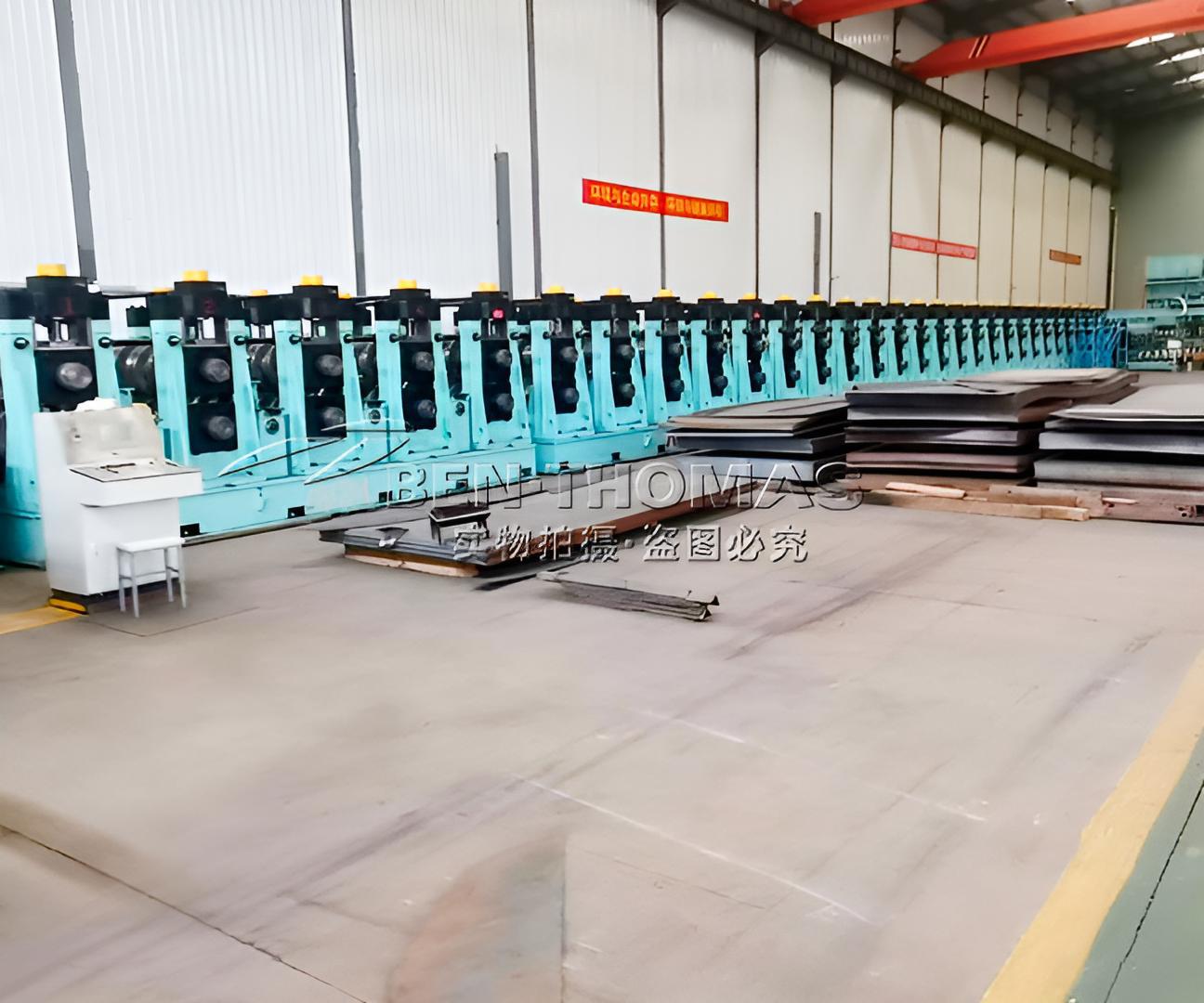

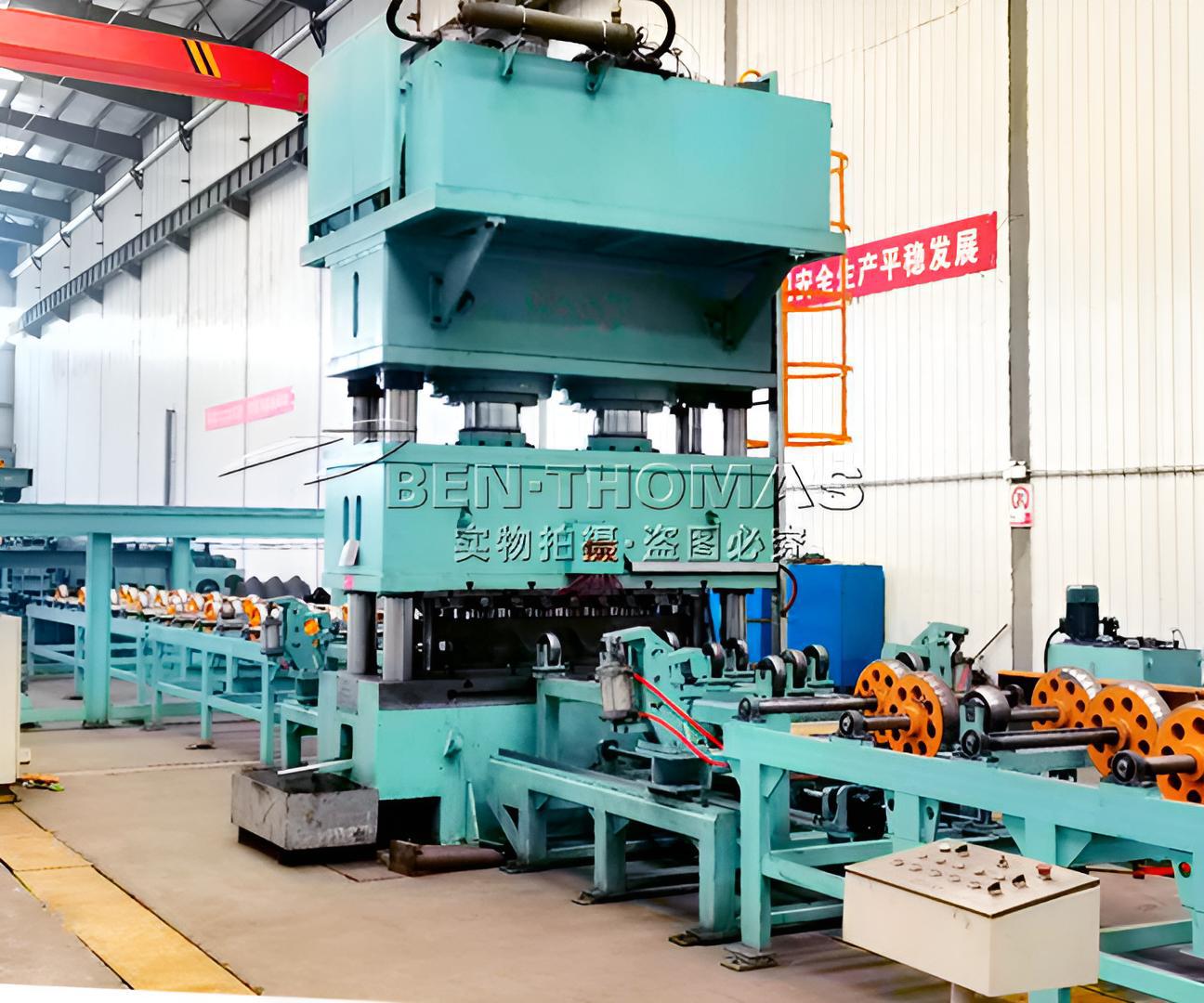

4. Machine Pictures:

















5. Machine Details :


 Description

Production name

Metal Assembled Corrugated Pipe Machine

Machine floor area

About 25.5m*2.5mL*W)

Feeding direction

left in, and right out

Voltage parameter

380v,50Hz, 3 phase

Hydraulic oil

46# hydraulic oil

Gear oil

18# hyperbolic gear oil

Shaft diameter

68*13---13 steps

Shaft Material

40Cr, quenching and tempering

Rack

Gantry type (Memorial archway type)

Rack material

Nodular cast iron

Punching die material

SKD11

Rack quantity

20 rows

Drive mode

Gear box drive

Working speed

4--8 m /min

Transmission mode

Each rack with a gear distribution box drive

Forming roller

GCr15, quenching, the hardness of HRC56-62 º

Motor power

45 KW *2 Siemens brand

Machine color

Machine base

As required


Rack and gear box

As required


6. After-sales service :

1) . User manuals / videos on installation, adjustment, setup and maintenance of the machine will be provided.

2). The machine is with Wi-Fi function, our technicians will help to work if the machine has a problem.

3). when the borders are open, we will send technicians to your factory for training. (The cost is paid by the seller.)

4). Warranty 2 years (Excluding man-made damage)

5). Delivery time: 90 working days.

6). Machine price: contact us.
