Metal Spiral Corrugated Pipe Machine

Short Description:

Contacts: Ms. Elise
Work Phone: +86 15232975068
Email: elise@tgrollforming.com
WhatsApp: +86 15232975068
WeChat: +8615232975068
Skype: babygirlelise2


Product Detail

Product Tags

Spiral corrugated pipes, as the best combination of strength and hydraulic efficiency, feature helical pattern and lock-seam construction in round shapes with different diameters. They are manufactured from quality galvanized corrugated sheet using advanced manufacturing technology. Meanwhile, spiral corrugated pipes can be connected by coupling systems or flange plates according to the project requirements.

Metal corrugated pipe has widely applications:
Drain system.
Culverts.
Small bridges.
Storm water detention.
Gas pipeline protection tube.
Underground cable protection.
Underpasses.
Passages for wildlife.
Coalmine vent pipes.
Well casing pipes.
Cisterns.
Agricultural irrigation.
Municipal engineering.
Storm sewer, etc.
Our CMP machine can form the pipes with corrugations : 68mm × 13mm (2-2/3" × 1/2");
75mm × 25mm (3" × "); 125mm × 25mm (5" × 1"). 150*50mm
Whole production line contains parts from decoiler , corrugations forming, pipe making, pipe cutting, pipe receiving.

1.Drawing of the profile :

(Machine can be customized according to your needs, the following picture is the drawing provided by our customer, for reference only.)





2.Finished Product:





3.Working process of the production line:


Hydraulic uncoiler - Cutting - Feeding - Corrugated coil forming - Pipe forming - Cutting --- Receiving table

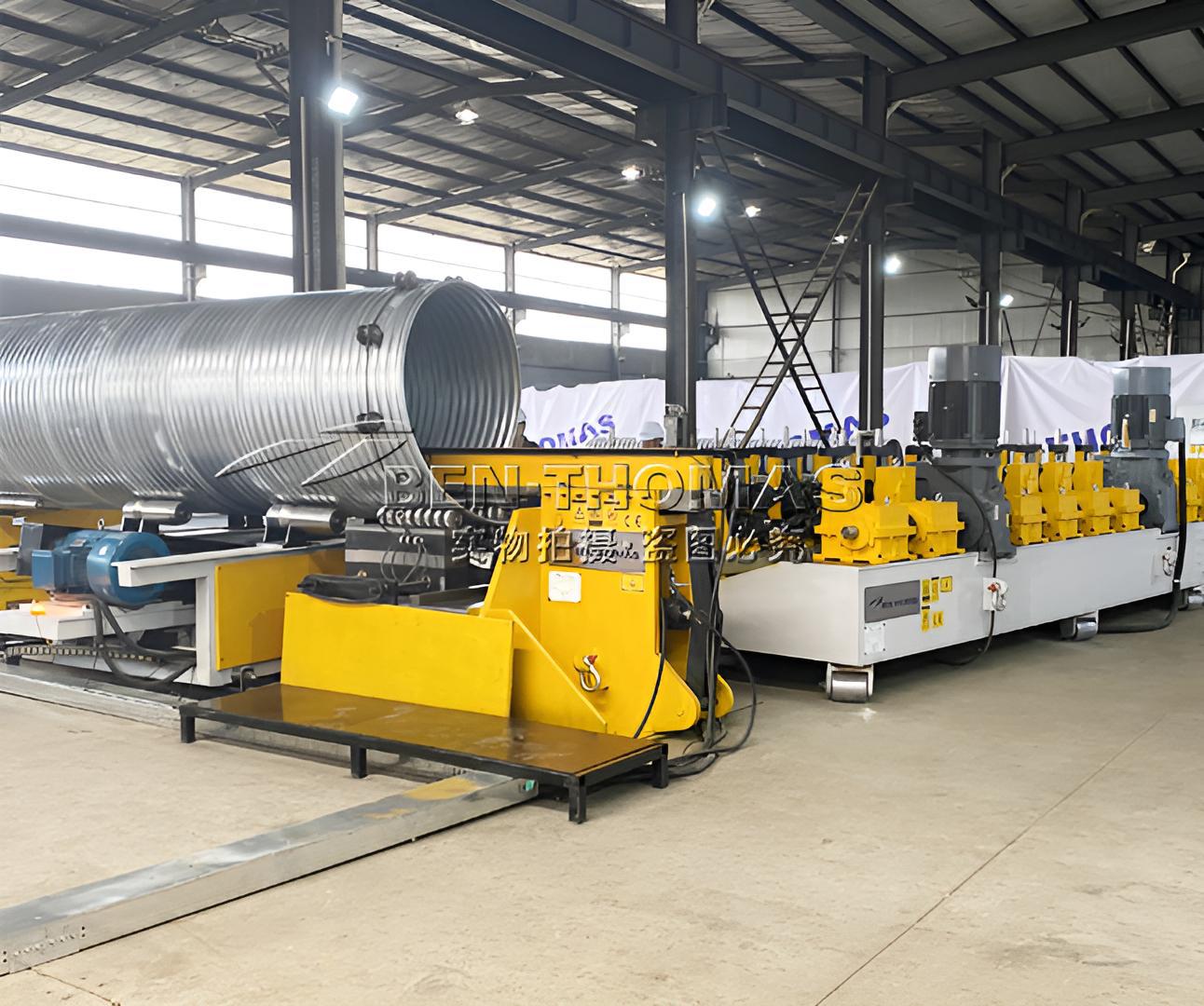

4. Machine Pictures:











5. Machine Details :


 Description

Production name

Silo Panel Forming Machine

Machine floor area

About 25.5m*2m(L*W

Feeding direction

left in, and right out

Voltage parameter

380v,50Hz, 3 phase

Hydraulic oil

46# hydraulic oil

Gear oil

18# hyperbolic gear oil

Shaft diameter

140mm

Shaft Material

40Cr, quenching and tempering

Rack

Gantry type (Memorial archway type)

Rack material

Nodular cast iron

Punching die material

SKD11

Rack quantity

22 rows

Drive mode

Gear box drive

Working speed

about 1 piece/min

Transmission mode

Each rack with a gear distribution box drive

Forming roller

GCr15, quenching, the hardness of HRC56-62 º

Motor power

45 KW *2 Siemens brand

Machine color

Machine base

As required


Rack and gear box

As required


6. After-sales service :

1) . User manuals / videos on installation, adjustment, setup and maintenance of the machine will be provided.

2). The machine is with Wi-Fi function, our technicians will help to work if the machine has a problem.

3). when the borders are open, we will send technicians to your factory for training. (The cost is paid by the seller.)

4). Warranty 2 years (Excluding man-made damage)

5). Delivery time: 90 working days.

6). Machine price: contact us.
