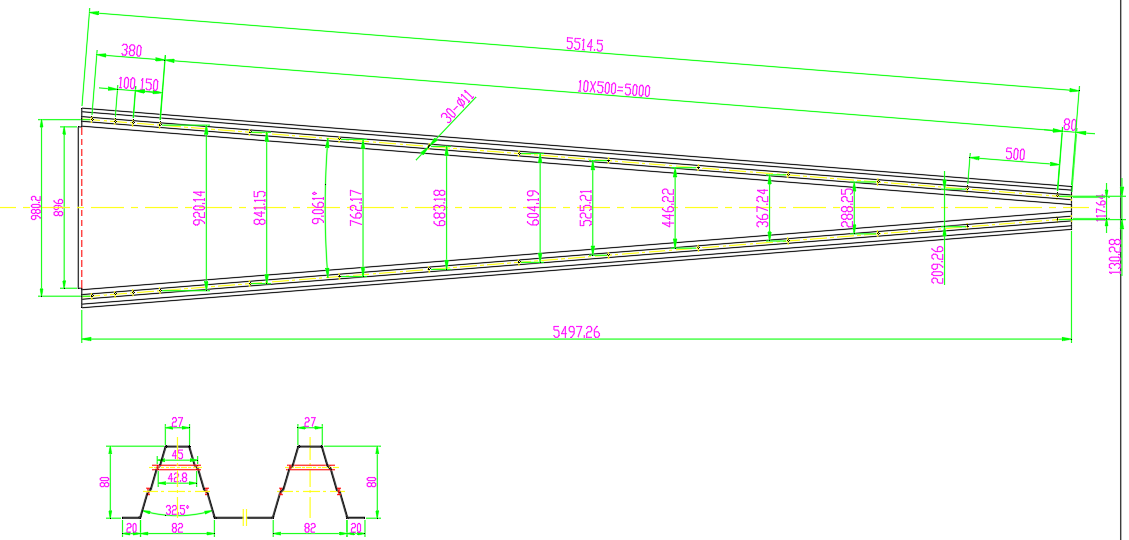

1. Silo Roof Profile Drawing:
(Machine can be customized according to your needs, the following picture is the drawing provided by our customer, for reference only .)
2.Finished Product:
3.Working process of the production line:
Decoiler—leveling—cutting with angle —servo displacement rolling shear—double layer conveying roller table—single layer conveying roller table —pneumatic pressing—CNC servo punching 1#—roll forming machine 1#—conveying roller table —CNC servo punching 2#—rolling forming machine 2#—conveying roller table—pneumatic suction and palletizing
4. Machine Pictures:
5. Machine Details :
|
No |
Name |
Number |
|
1 |
10 tons hydraulic automatic decoiler (with feeding trolley) |
1 set |
|
2 |
Leveling machine |
1 set |
|
3 |
Angle cutting machine |
1 set |
|
4 |
Servo displacement rolling shear (with pinch roller) |
1 set |
|
5 |
10m double-layer conveyor roller table (equipped with stopper, turn over, guide device) |
1 set |
|
6 |
8m single-layer conveyor roller (with guide positioning) |
1 set |
|
7 |
Double-station angle punching machine (including cutting small head waste) |
2 set |
|
8 |
8m conveying roller table (with guiding positioning, pneumatic pressing and feeding device) |
1 set |
|
9 |
Roll forming part 1# |
1 set |
|
10 |
CNC servo punching machine 1# |
1 set |
|
11 |
15m conveyor roller |
1 set |
|
12 |
8m conveying roller table (with guiding positioning, pneumatic pressing and feeding device) |
1 set |
|
13 |
CNC servo punching machine 2# |
1 set |
|
14 |
Roll forming part 2# |
1 set |
|
15 |
15m conveyor roller platform |
1 set |
|
16 |
8m conveyor roller platform (with guide and positioning device) |
1 set |
|
17 |
Automatic palletizer |
1 set |
|
18 |
Electric control system |
1 set |
|
19 |
Pneumatic system |
1 set |
|
20 |
Hydraulic system |
1 set |
6. After-sales service :
1) . User manuals / videos on installation, adjustment, setup and maintenance of the machine will be provided.
2). The machine is with Wi-Fi function, our technicians will help to work if the machine has a problem.
3). when the borders are open, we will send technicians to your factory for training. (The cost is paid by the seller.)
4). Warranty 2 years (Excluding man-made damage)
5). Delivery time: 90 working days.
6). Machine price: contact us.
7.About Us :

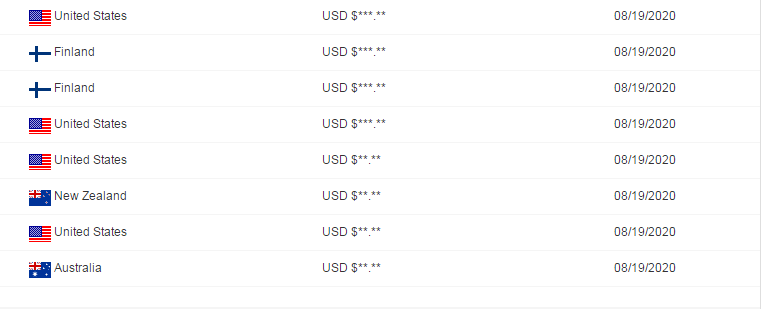

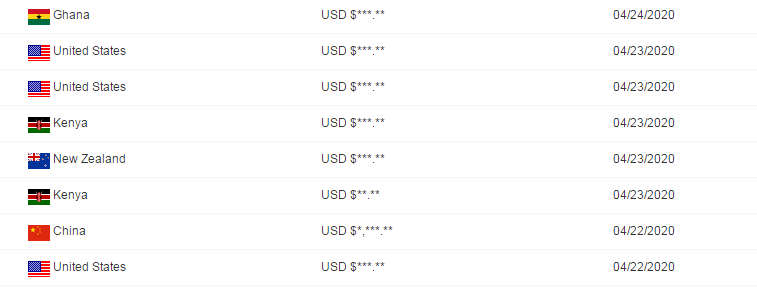

8.Transaction history :
