Grain bin silo rack making machine
1.Drawing of the profile of the silo stiffener:
(Machine can be customized according to your needs, the following picture is the drawing provided by our customer, for reference only.)

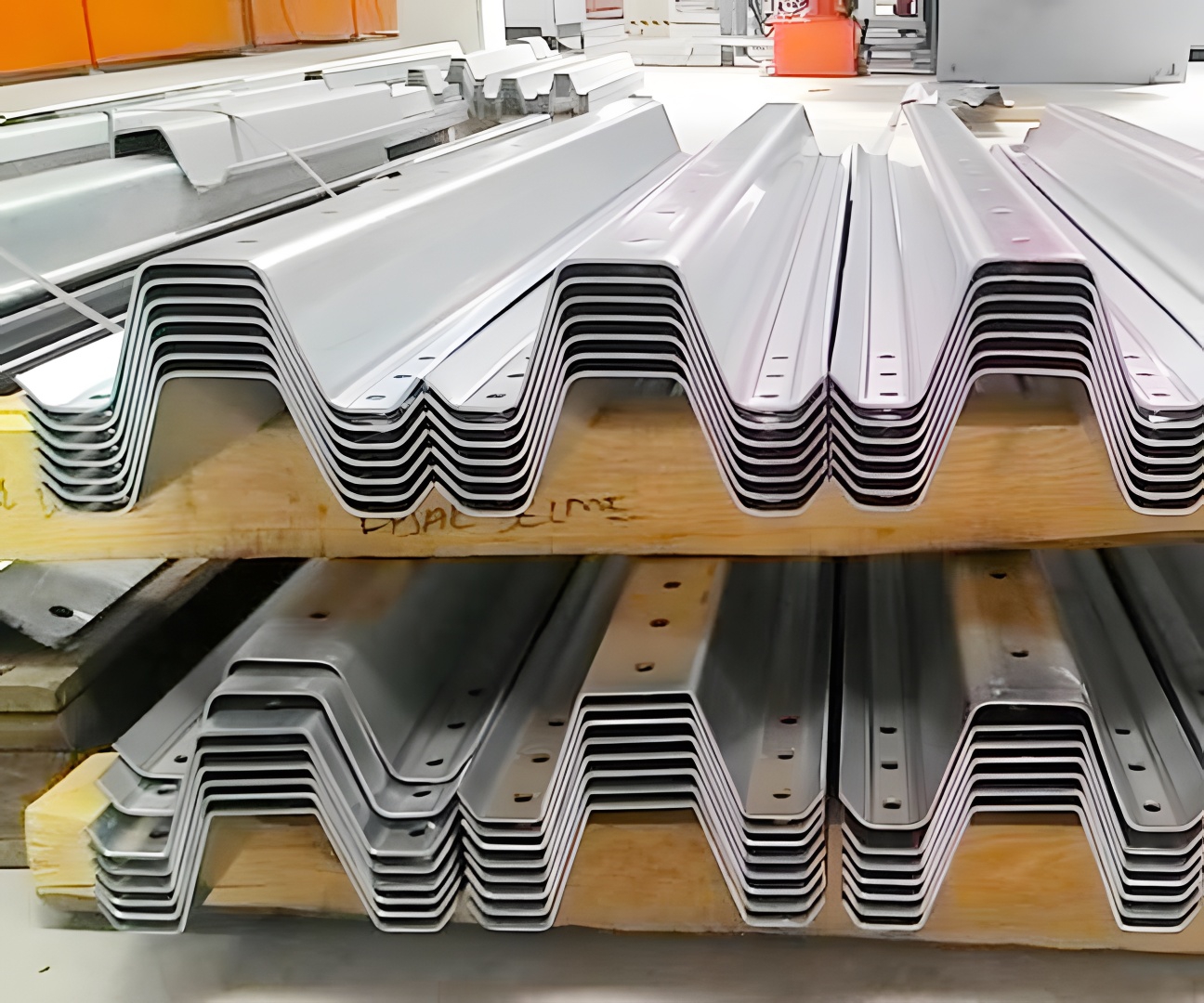

2.Finished Product:
3.Working process of the production line:
Hydraulic unwinder ----- Shovel device (auxiliary feed + leveling) ----- Pre-cutting - Main forming machine ----- Telescopic support - Hydraulic punching device - Moving pallet ----- CNC bending Hydraulic - Hydraulic cutting - receiving table

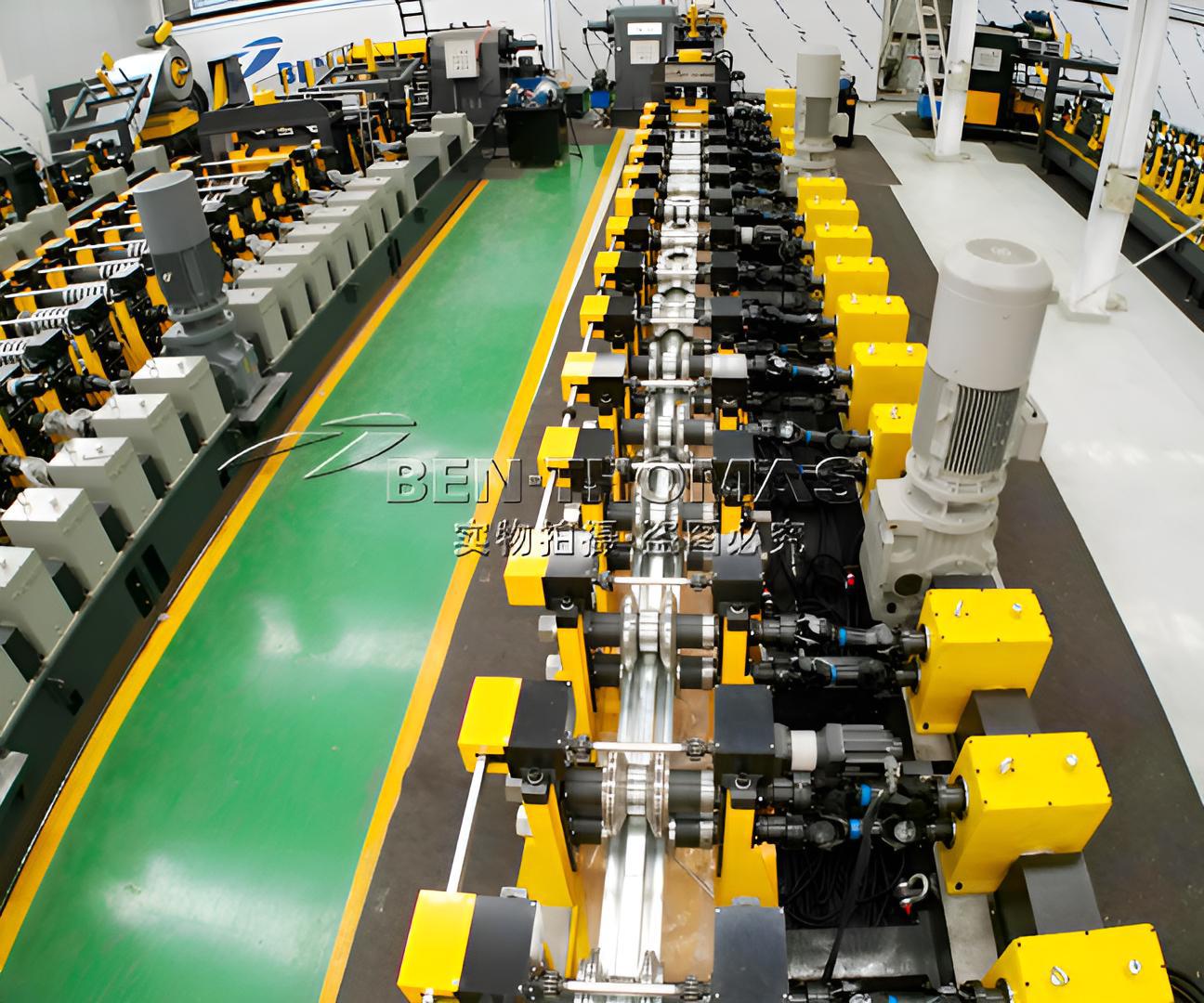

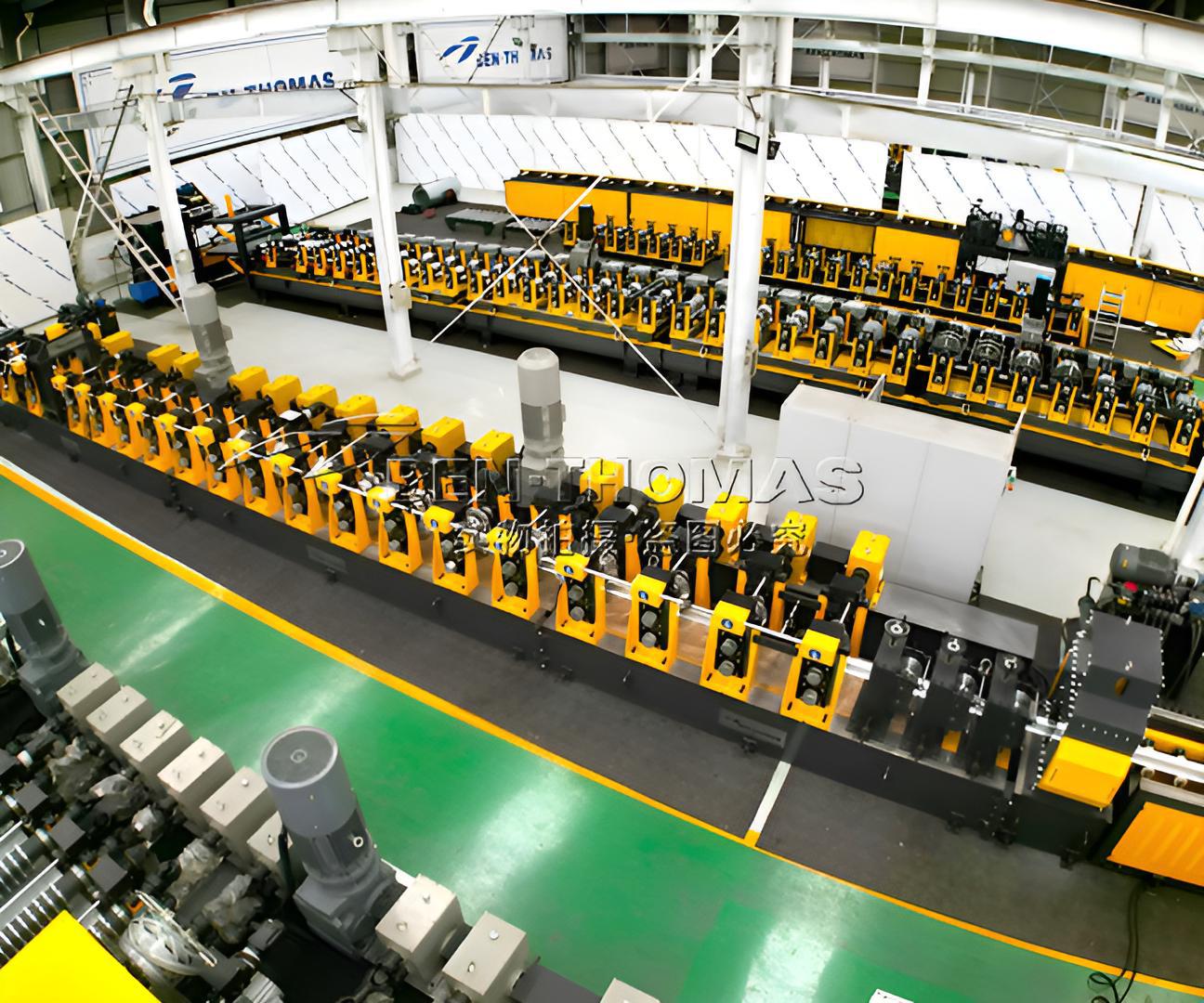

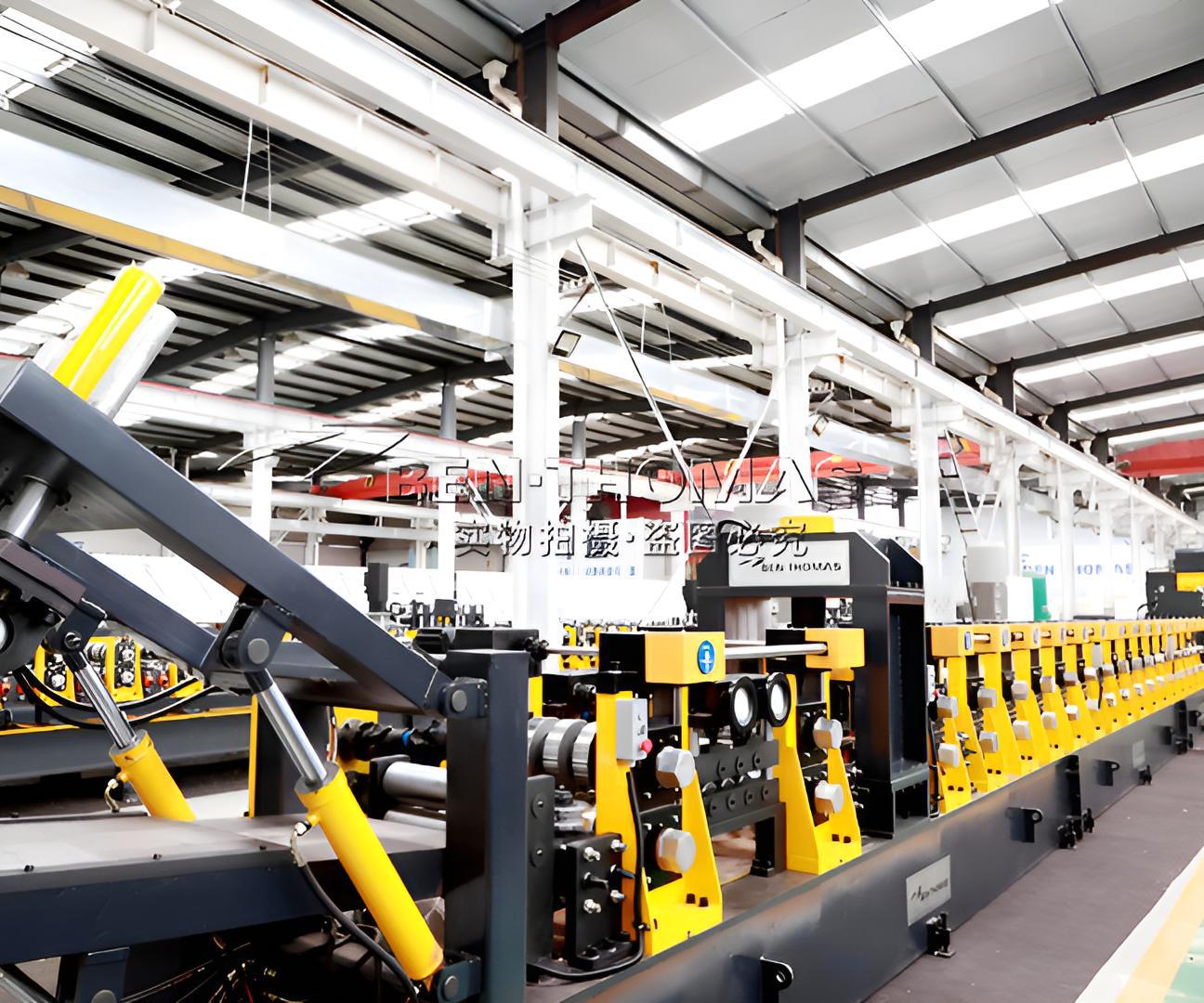

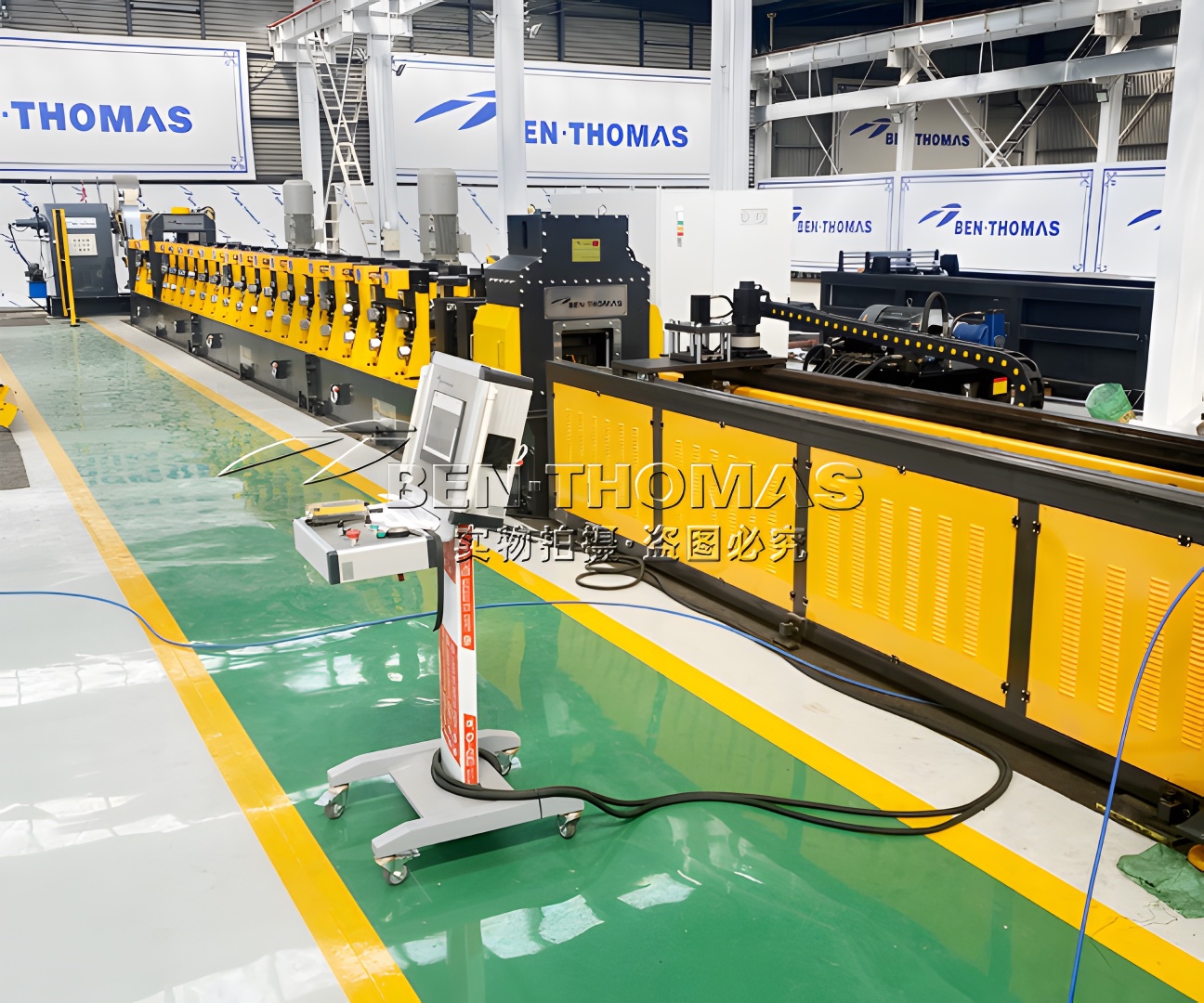

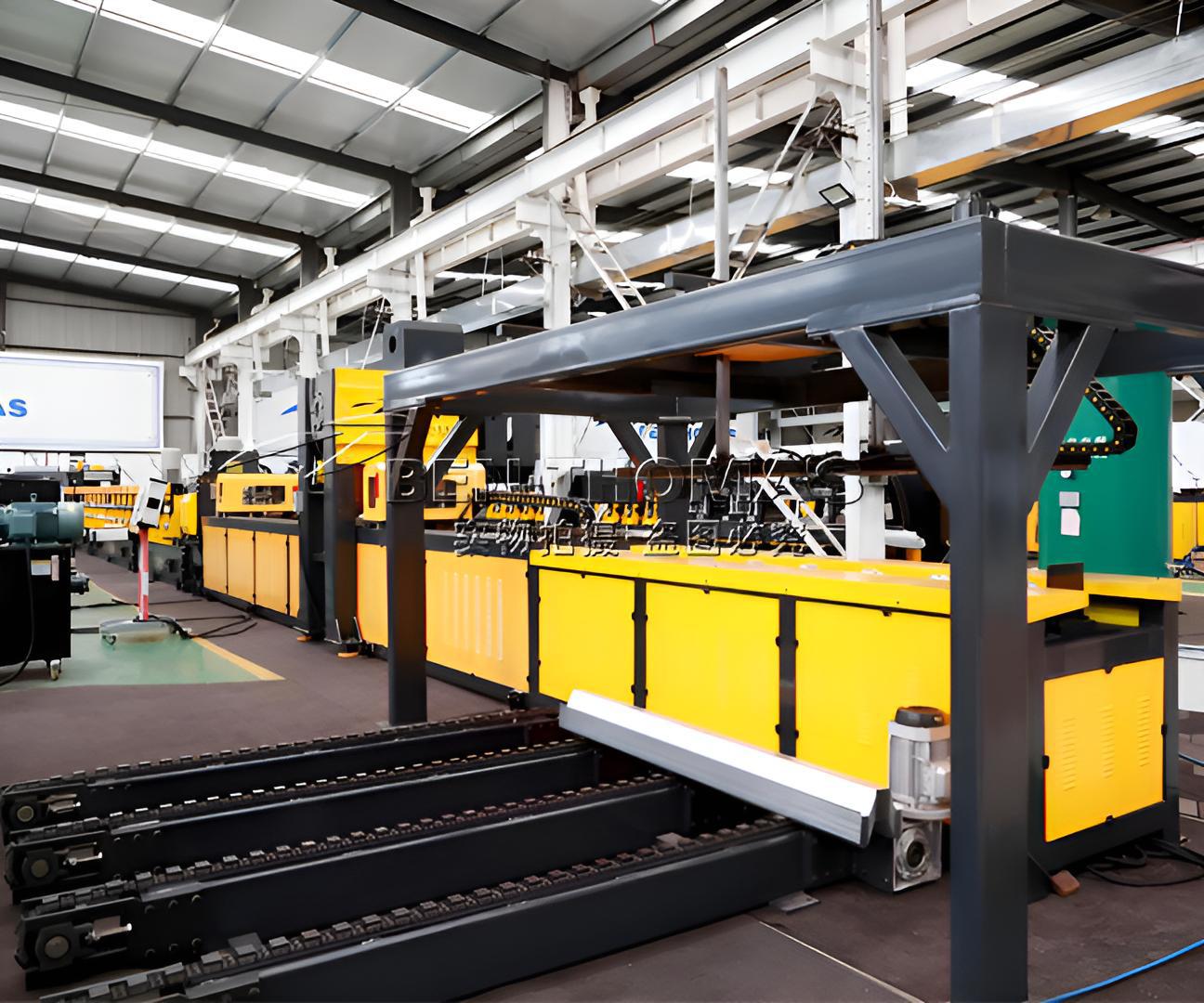

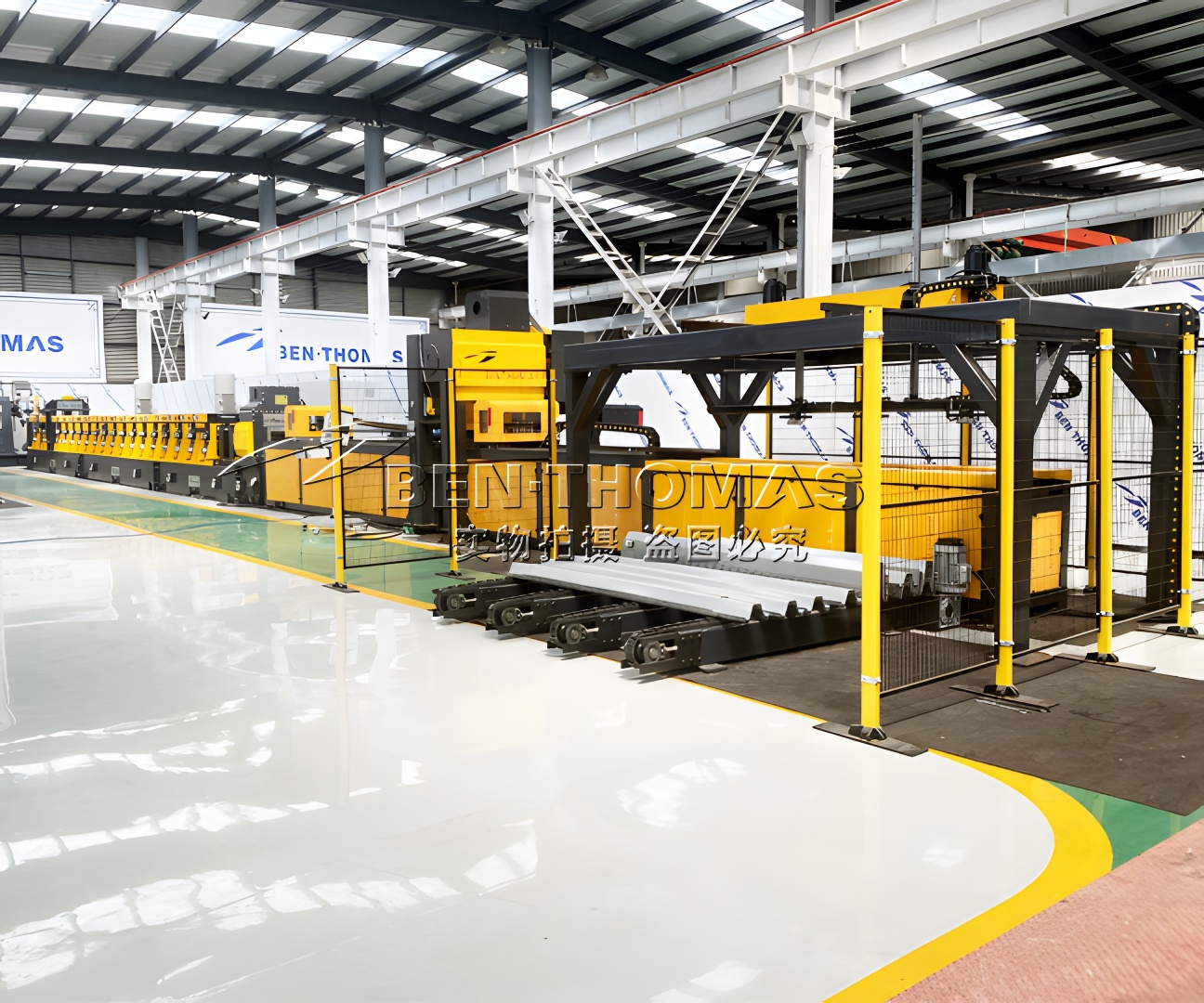

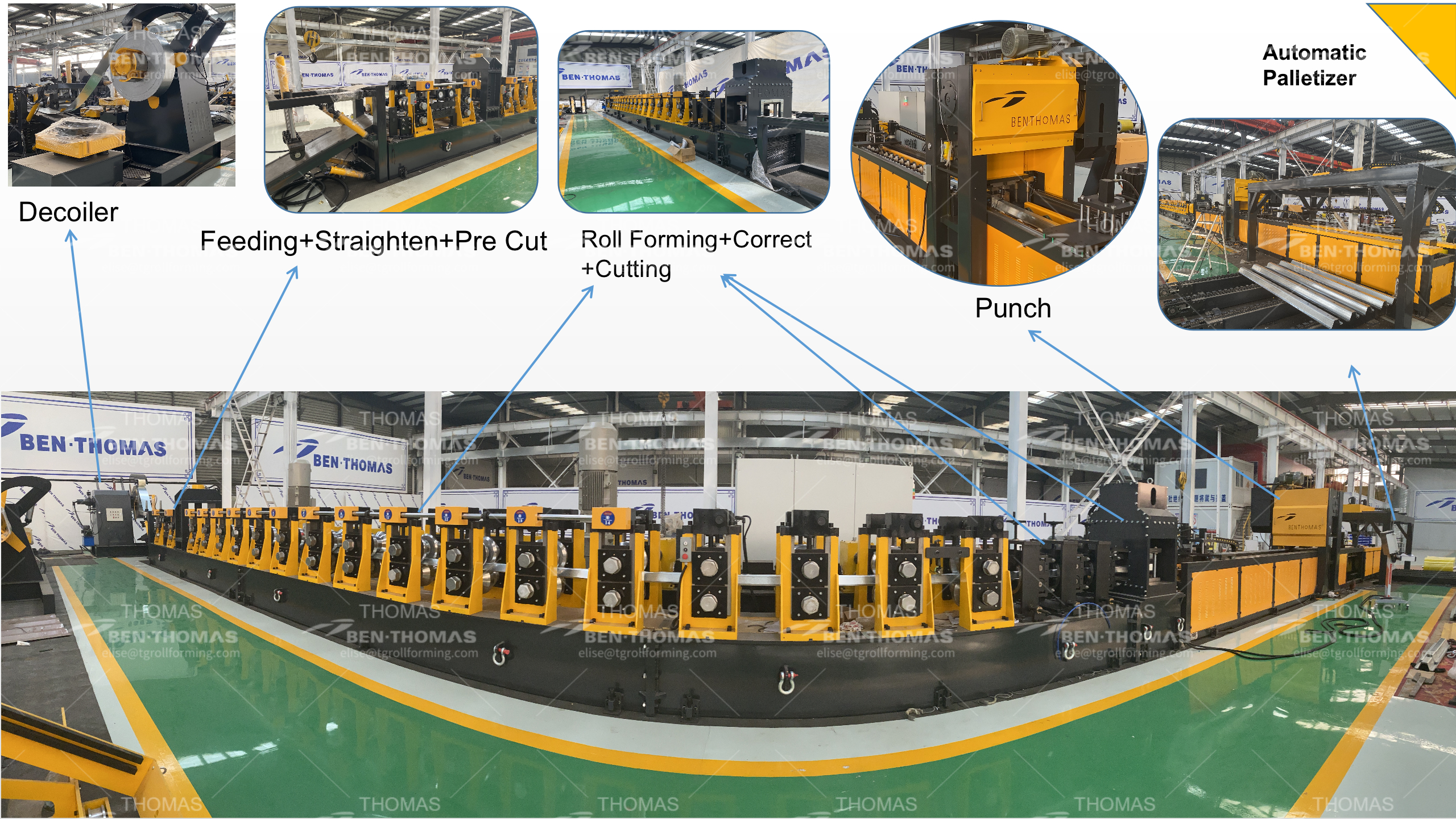

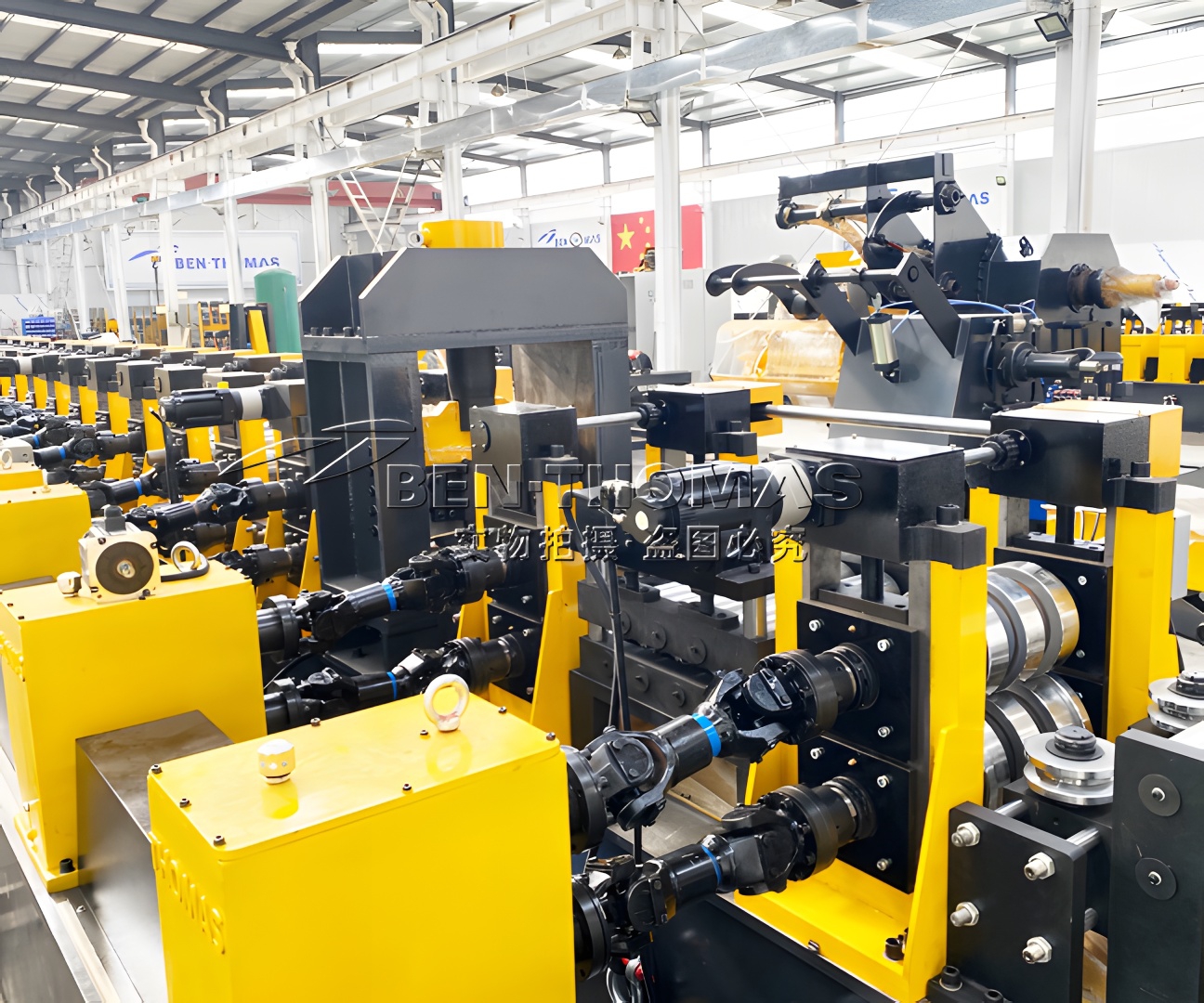

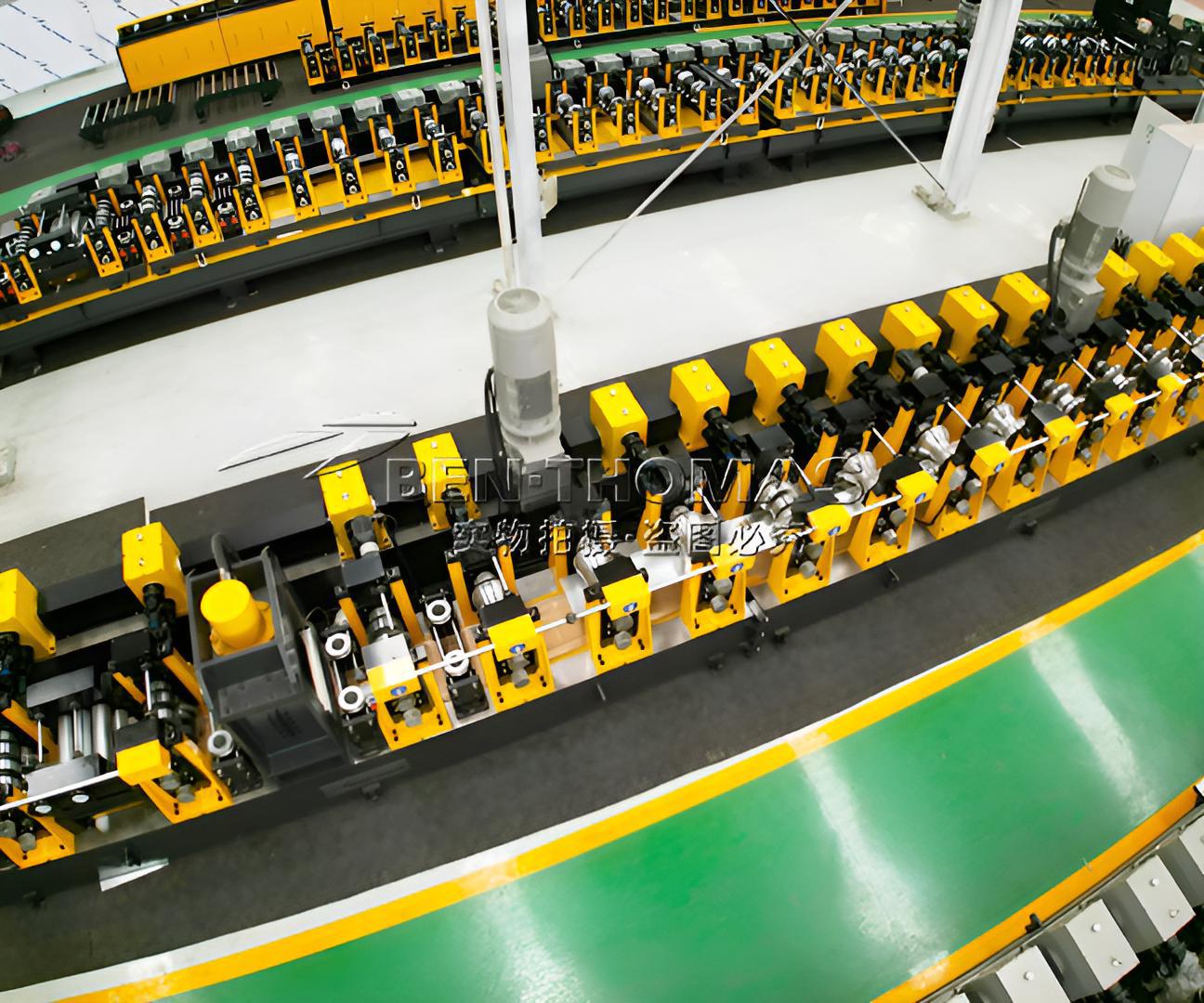

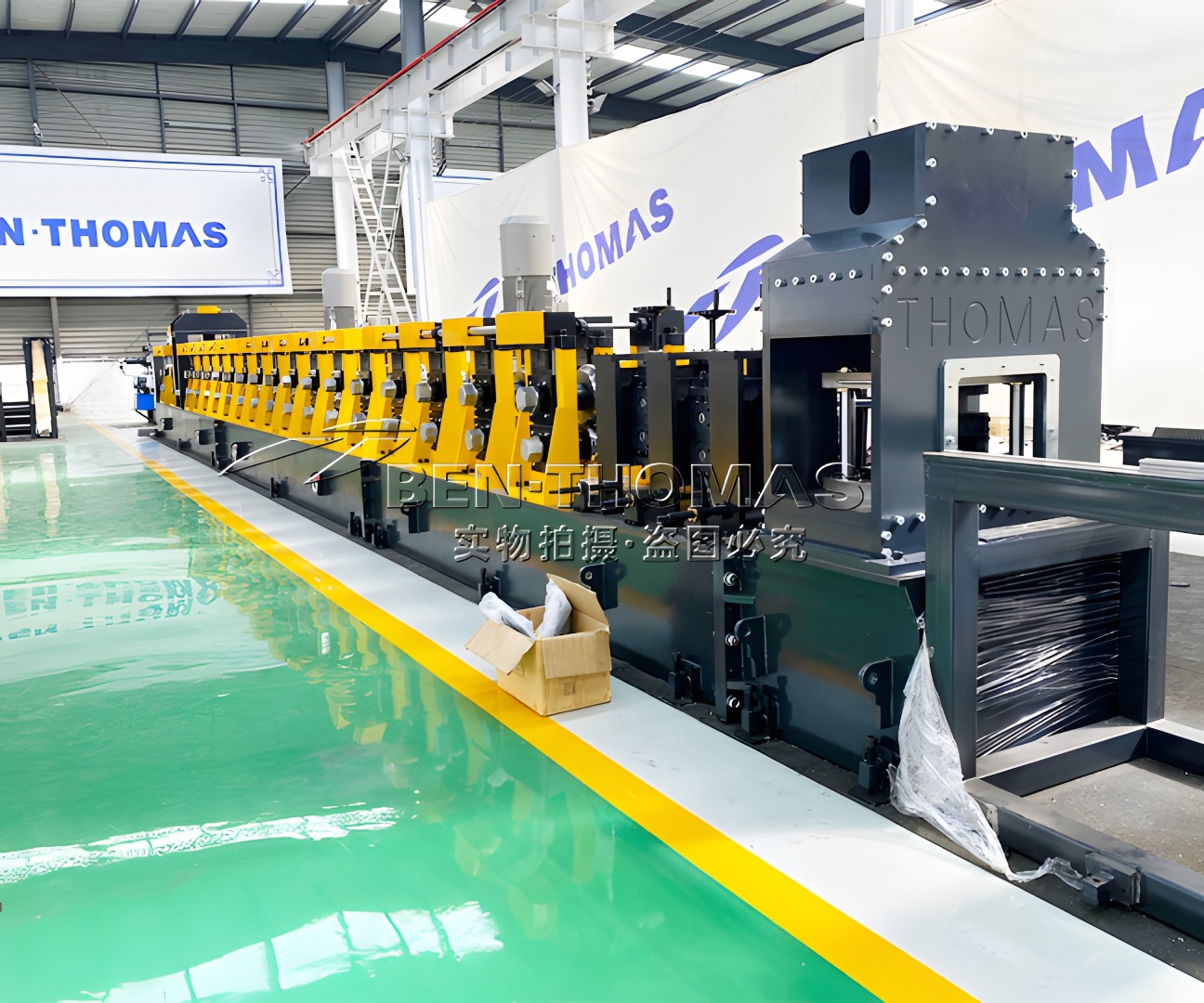

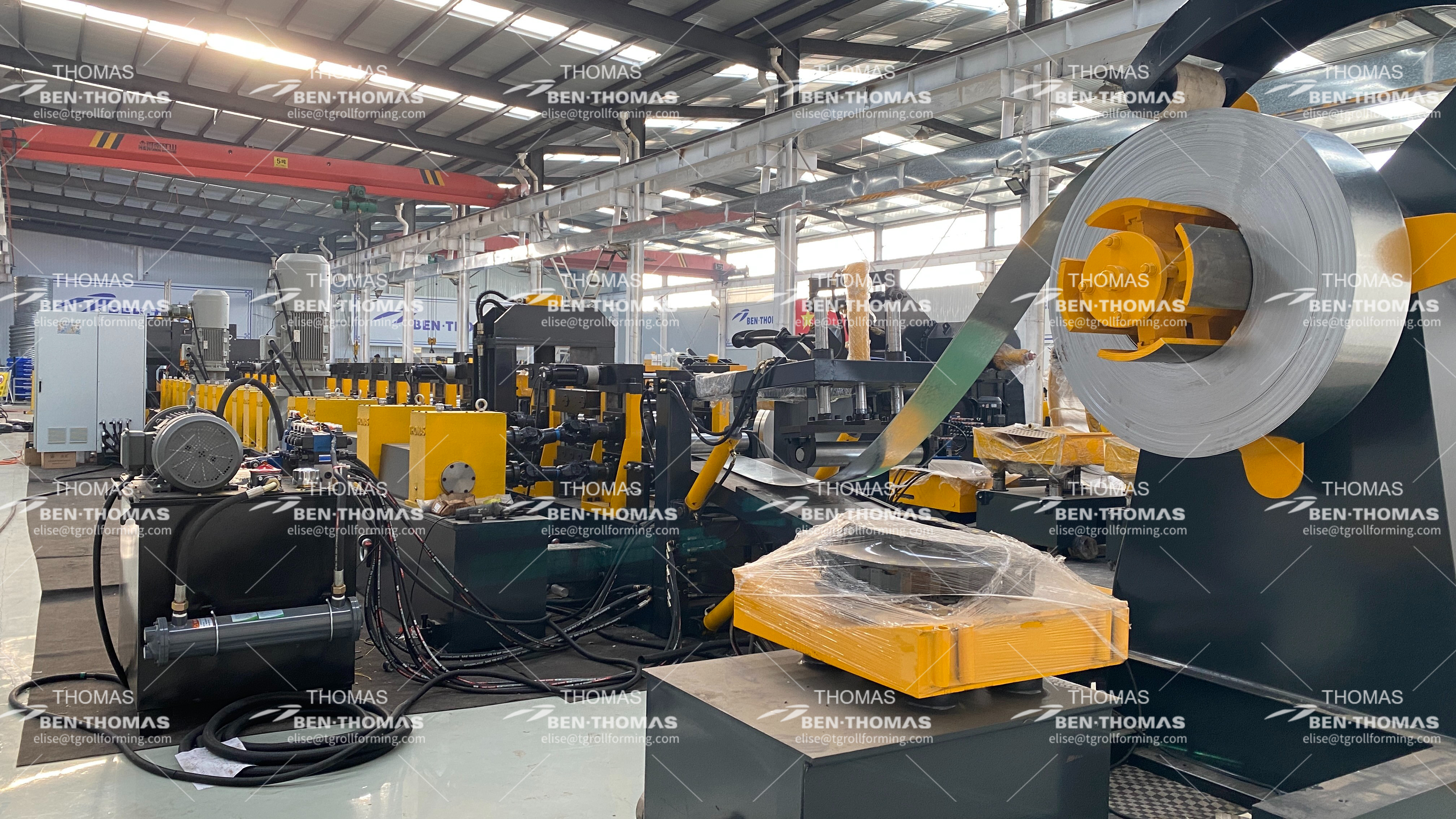

4. Machine Pictures:
5. Machine Details :
| Description | ||
| Production name | Silo Stiffener Forming Machine | |
| Machine floor area | About 25.5m*2m（L*W） | |
| Feeding direction | left in, and right out | |
| Voltage parameter | 380v,50Hz, 3 phase | |
| Hydraulic oil | 46# hydraulic oil | |
| Gear oil | 18# hyperbolic gear oil | |
| Shaft diameter | 120mm | |
| Shaft Material | 40Cr, quenching and tempering | |
| Rack | Gantry type (Memorial archway type) | |
| Rack material | Nodular cast iron | |
| Punching die material | SKD11 | |
| Rack quantity | 18 rows | |
| Drive mode | Gear box drive | |
| Punch | Mechanical | |
| Transmission mode | Each rack with a gear distribution box drive | |
| Forming roller | GCr15 | |
| Motor power | 45 KW *2 Siemens brand | |
| Machine color | Machine base | As required |
| Rack and gear box | As required | |
6. After-sales service :
1) . User manuals / videos on installation, adjustment, setup and maintenance of the machine will be provided.
2). The machine is with Wi-Fi function, our technicians will help to work if the machine has a problem.
3). when the borders are open, we will send technicians to your factory for training. (The cost is paid by the seller.)
4). Warranty 1 years (Excluding man-made damage)
5). Delivery time: 90 working days.
6). Machine price: contact us.
