Steel helically corrugated pipe machine

Short Description:

Contacts: Ms. Elise
Work Phone: +86 15232975068
Email: elise@tgrollforming.com
WhatsApp: +86 15232975068
WeChat: +8615232975068
Skype: babygirlelise2


Product Detail

Product Tags

Metal Spiral culvert pipe machine : With the Thomas system, you can change the steel coil into different corrugation of metal corrugated pipes and meet the vast array of market demands. This includes such uses as highway and railway drainage pipes, and storm sewer pipes and bridge replacements pipe. Thomas gives you the most versatility to maximize your success. Large corrugated lockseam pipe machine can manufacture different diameters as per request. Metal corrugated pipe mill includes : Hydraulic decoiler, feeding system , roll forming , pipe forming system, Automatic Cut-Off system, Runout and Dump System .

1.Drawing of the profile :

(Machine can be customized according to your needs, the following picture is the drawing provided by our customer, for reference only.)

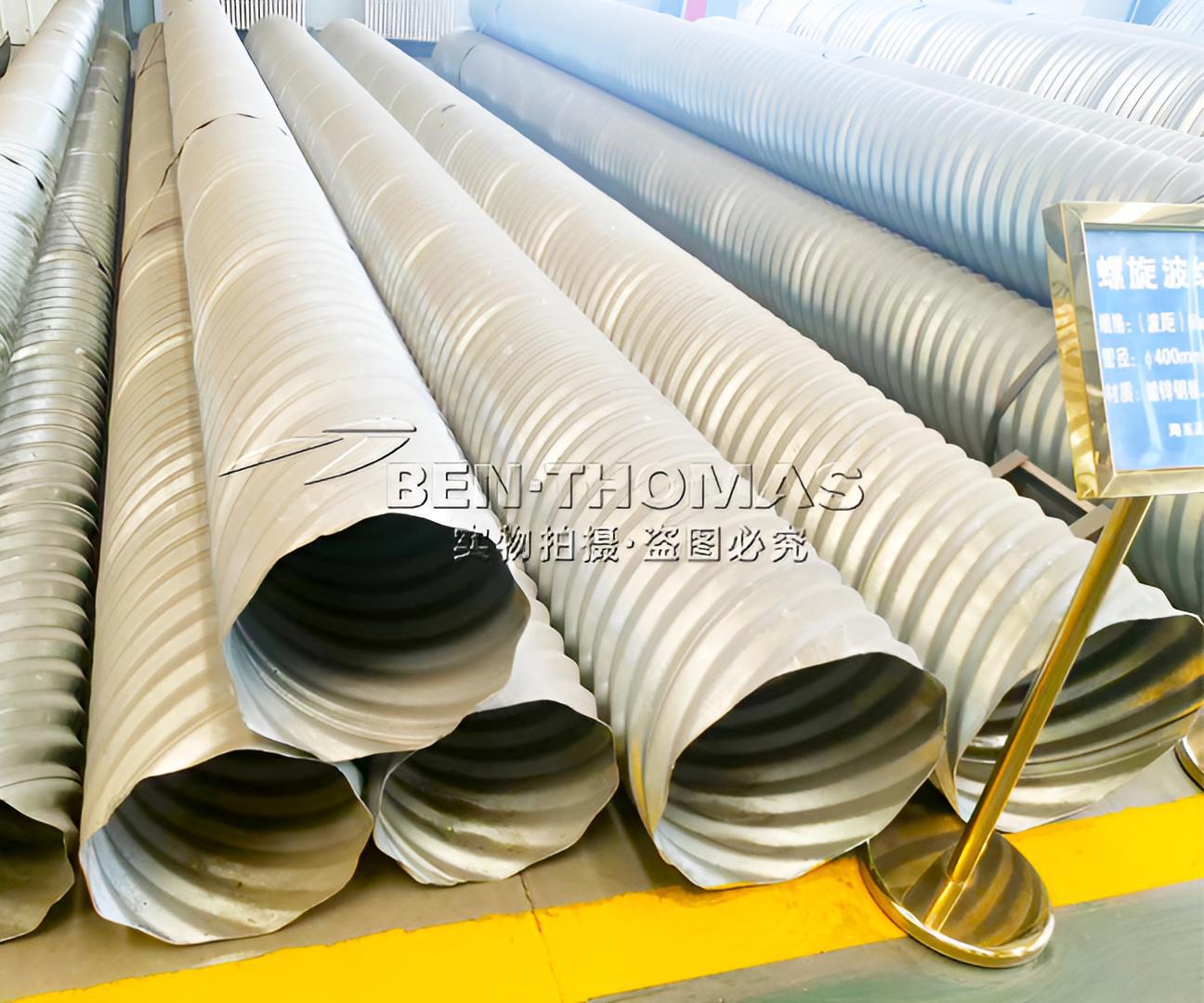

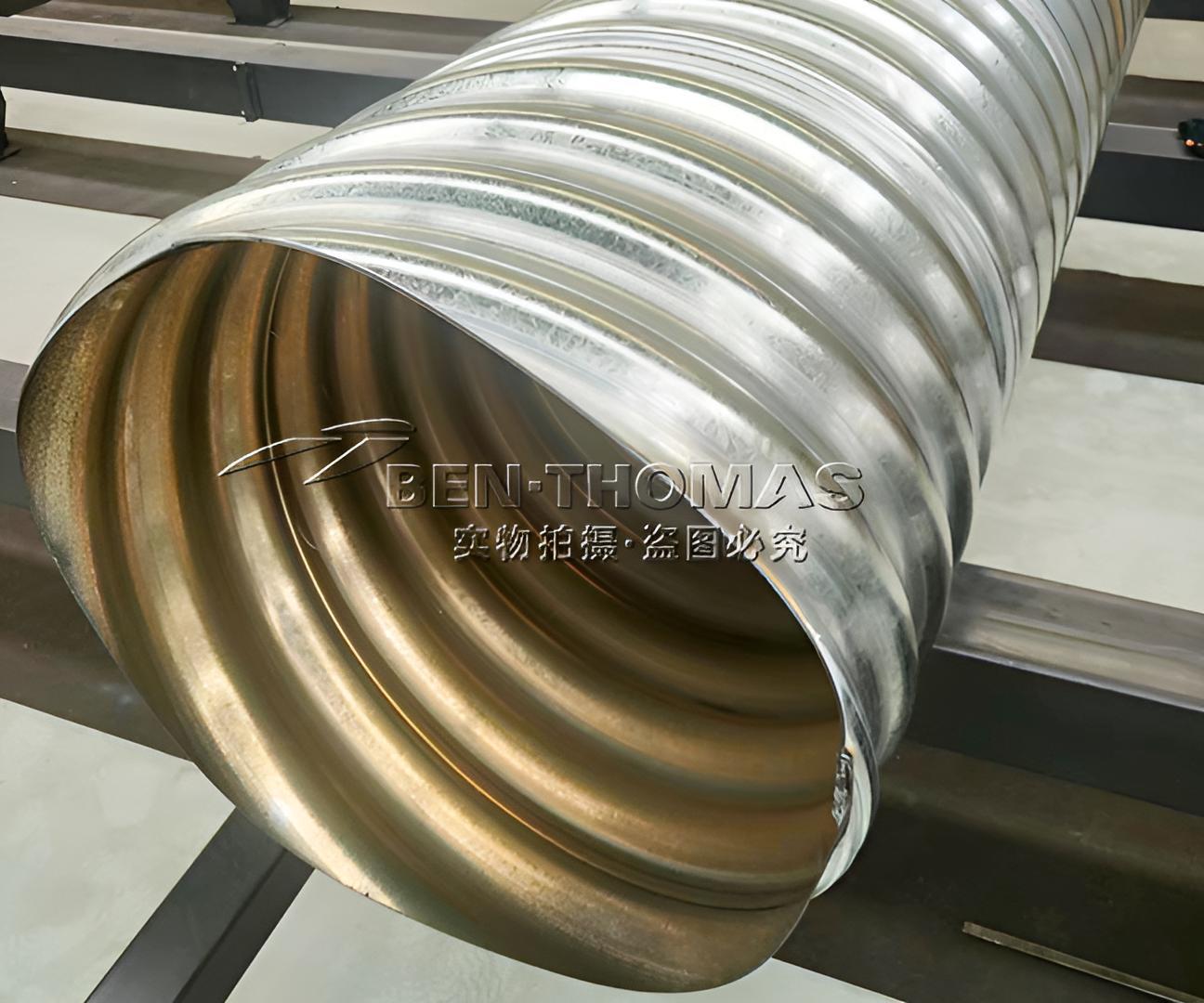

2.Finished Product:








3.Working process of the production line:



Hydraulic uncoiler - Cutting - Feeding - Corrugated coil forming - Pipe forming - Cutting --- Receiving table

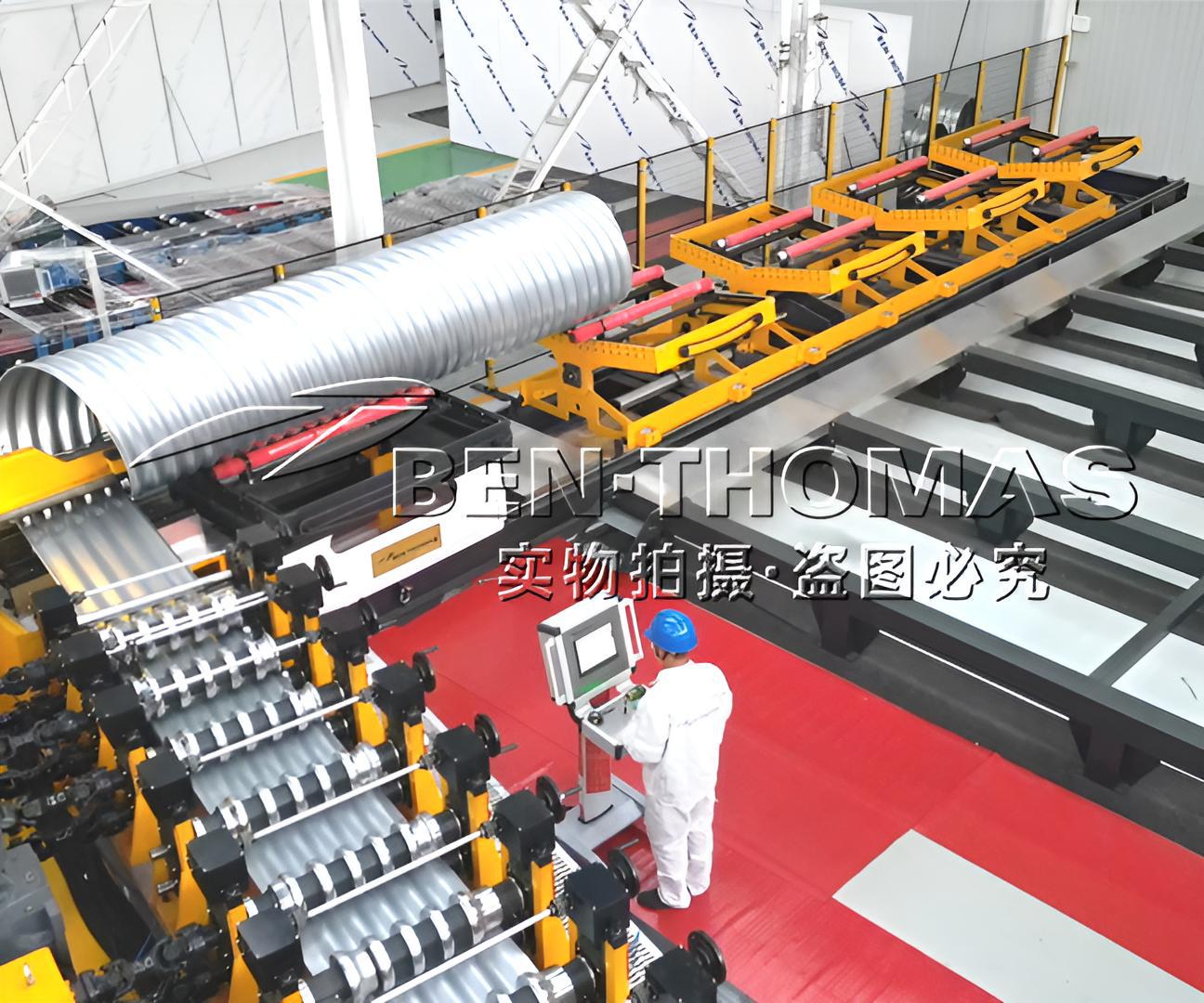

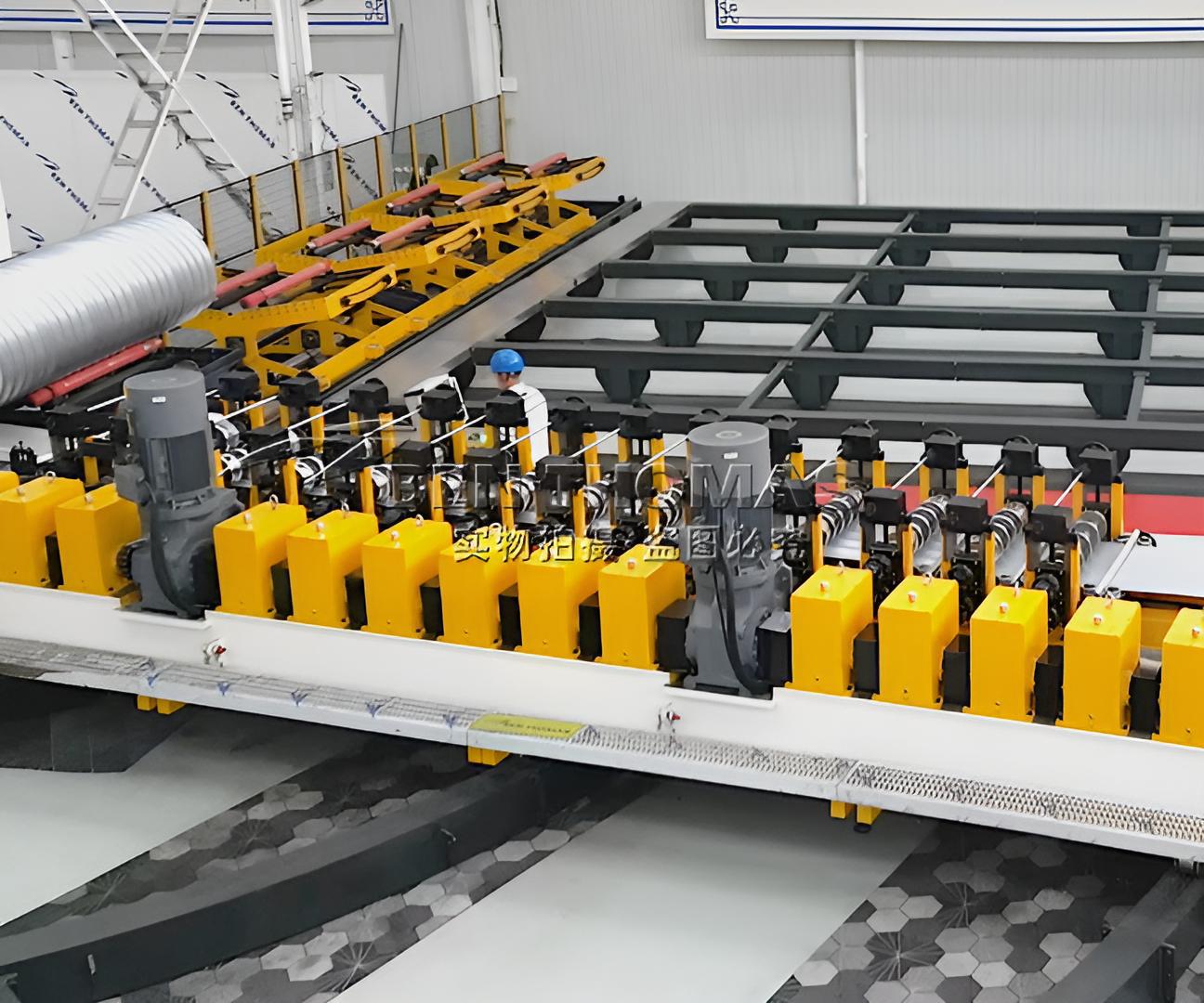

4. Machine Pictures:

6



Steel helically corrugated pipe machine (4)

Steel helically corrugated pipe machine (3)

5. Machine Details :



 Description
Production name Silo Panel Forming Machine
Machine floor area About 25.5m*2m(L*W)
Feeding direction left in, and right out
Voltage parameter 380v,50Hz, 3 phase
Hydraulic oil 46# hydraulic oil
Gear oil 18# hyperbolic gear oil
Shaft diameter 140mm
Shaft Material 40Cr, quenching and tempering
Rack Gantry type (Memorial archway type)
Rack material Nodular cast iron
Punching die material SKD11
Rack quantity 22 rows
Drive mode Gear box drive
Working speed about 1 piece/min
Transmission mode Each rack with a gear distribution box drive
Forming roller GCr15, quenching, the hardness of HRC56-62 º
Motor power 45 KW *2 Siemens brand
Machine color Machine base As required
Rack and gear box As required



6. After-sales service :

1) . User manuals / videos on installation, adjustment, setup and maintenance of the machine will be provided.

2). The machine is with Wi-Fi function, our technicians will help to work if the machine has a problem.

3). when the borders are open, we will send technicians to your factory for training. (The cost is paid by the seller.)

4). Warranty 2 years (Excluding man-made damage)

5). Delivery time: 90 working days.

6). Machine price: contact us.
